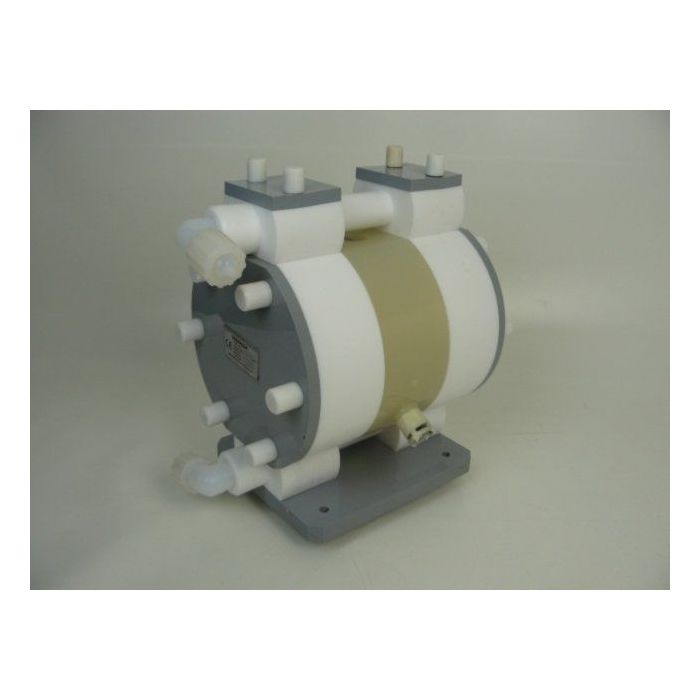

Yamada DP20-F Plastic cased Air Operated Diaphragm Pump

This is an Air-Operated Double Diaphragm Pump Yamada F-Series Clean Room Manufactured pumps are specifically designed for the safe and efficient transfer of Ultra High-Purity Process Chemistries. They provide maximum corrosion resistance, ultra high-purity levels and low particle generation. The pump includes a 100% machined virgin PTFE diaphragm, liquid chamber and manifold.





The patented air valve on all Yamada F-Series pumps never requires lubrication or pre-packing. Plus, it is easily accessible without disassembling the pump.



To ensure maximum corrosion resistance, purity levels and low particle generation, Yamada pumps feature diaphragms, liquid chambers and manifolds that are machined from 100% virgin PTFE.

Polypropylene and High Density Polyethylene are used in the air motor section (non-wetted) to ensure resistance in a corrosive environment.



All Yamada F-Series diaphragms are manufactured from 100% virgin PTFE. As a result, these diaphragms will last up to twice as long as those found in many competitive pumps. In addition, incorporating minimal shaft travel reduces pump pulsation.



Air operation eliminates a potential source of ignition, so there’s no need to take additional preventative measures when pumping volatile or

flammable liquids or when using the pump

Available with 20MM 3/4" NPT liquid connections

Maximum flow up to 15.0 gallons/minute

End-user maintainable

Self-priming

Field-proven design

Clean room manufactured, DI water tested, nitrogen purged, and double bagged

Ball or flat check valves available

Pump Material

Casing-PTFE

Manifold- PTFE

Body (non-wetted)- Polypropylene

Check Valve- Ball or Check Valves available.

(Flat check valve is recommended for increased flow (up to 5%) and suction lift applications. Ball check valve is recommended for flooded section or viscous liquids.)

Discharge Volume/Cycle- 0.04 gal (150 cc)

Maximum Cycles/Minute- 250



Port Dimensions

Liquid Inlet & Discharge-  3/4" NPT

Air Inlet- Female 1/4" NPT

Air Exhaust (with muffler)- Female 3/8" NPT

Air Supply Pressure- 20 to 100 PSI (1.4 to 7 kgf/cm2)

Maximum Liquid Temperature- 176° F (80°C)

(212° F (100°C) option available)

Net Weight- NPT 32.2 lbs.  (15.5 kg)
