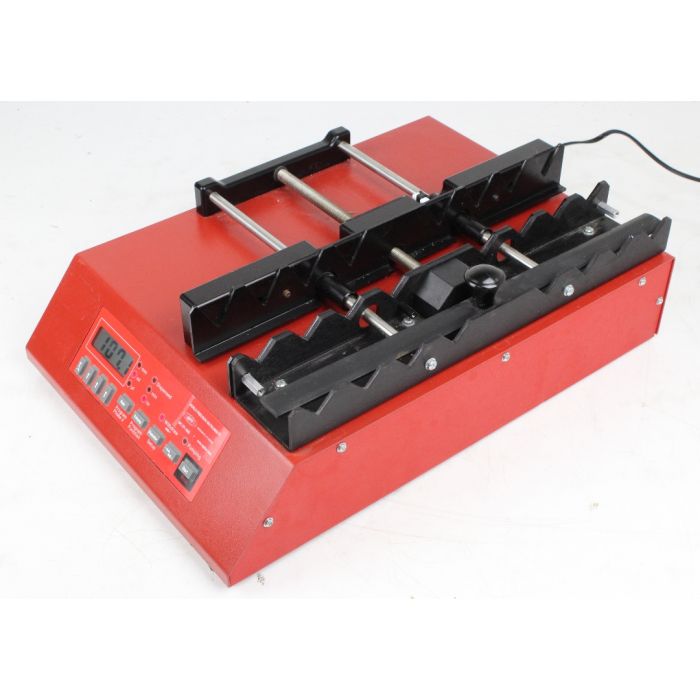

WPI Aladdin 8000 Syringe Pump
The Aladdin pump series arguably offers the best VALUE for any syringe pump on the market.
These pumps are available in single, dual, 4 , 6, and 8 syringe capacities. Although it is one of the most cost-effective pumps available, the Aladdin pump series boasts a versatility that is unmatched in its price range with features typically found only on pumps costing more than twice as much.
The Aladdin series provides the capability to both inject and withdraw. These pumps can be used for manually triggered injections, but also have the capability to be programmed in multi-step pumping sequences without the requirement for a computer. Even so, this series also has both RS-232 and TTL inputs for external control and status feedback to a computer, if desired. The pumps can be daisy chained for multi pump applications involving push/pull protocols or multiple independent channels. The performance characteristics are admirable, considering the price.
For the budget minded lab looking for a versatile and reliable pump, the Aladdin series is an excellent option.
The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo and Air-Tite.
The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo and Air-Tite.
The AL-8000 has the following additional features:
Glass or stainless steel syringes larger than 20mL may require Anti-siphon Modification Kit
Infusion rates from 0.568µL/hr (1cc syringe) to 380ml/hr (10 cc syringe)
Easy-to-use keypad interface
Higher flow rate models available
Includes all the advanced functions and programming features
Programmable preset protocols
RS-232 and TTL logic control interfaces
Worldwide power supplies available
Motor stall detection
Non-volatile memory of all parameters and programming
Upgradeable to the X and X2 advanced firmware versions for gradient pumping and increased program memory
Dispensing accuracy of ±1%
Glass or stainless steel syringes larger than 20mL may require Anti-siphon Modification Kit
Infusion rates from 0.568µL/hr (1cc syringe) to 380ml/hr (10 cc syringe)
Easy-to-use keypad interface
Higher flow rate models available
Includes all the advanced functions and programming features
Programmable preset protocols
RS-232 and TTL logic control interfaces
Worldwide power supplies available
Motor stall detection
Non-volatile memory of all parameters and programming
Upgradeable to the X and X2 advanced firmware versions for gradient pumping and increased program memory
Dispensing accuracy of ±1%
The AL-8000 Programmable Syringe Pump is designed for automation. It can be operated in a stand alone fashion or from a computer. Applications range from simple infusion to complex pumping programs. You may program up to 41 pumping phases that include changing pumping rates, setting dispensing volumes, inserting pauses, controlling or responding to external signals, or sounding the buzzer.
Two pumps connected with a dual cable create a Dual Pump System allowing for continuous infusion or emulsification. Network, control and monitor up to 100 pumps with one computer.
Example Flow Rates
Syringe Size Max Rate Min Rate
0.5 µL 17.45 µL/hr 0.001 µL/hr
1 mL 36.19 mL/hr 0.452 µL/hr
3 mL 153.2 mL/hr 1.914 µL/hr
5 mL 255 mL/hr 3.185 µL/hr
10 mL 415.9 mL/hr 5.195 µL/hr
Example Flow Rates
Syringe Size Max Rate Min Rate
0.5 µL 17.45 µL/hr 0.001 µL/hr
1 mL 36.19 mL/hr 0.452 µL/hr
3 mL 153.2 mL/hr 1.914 µL/hr
5 mL 255 mL/hr 3.185 µL/hr
10 mL 415.9 mL/hr 5.195 µL/hr
Serial# 250467
DIMENSIONS 10.25”x15”x5” High (26x38.1x12.7cm)
PDf Manual
| SKU | N273 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
