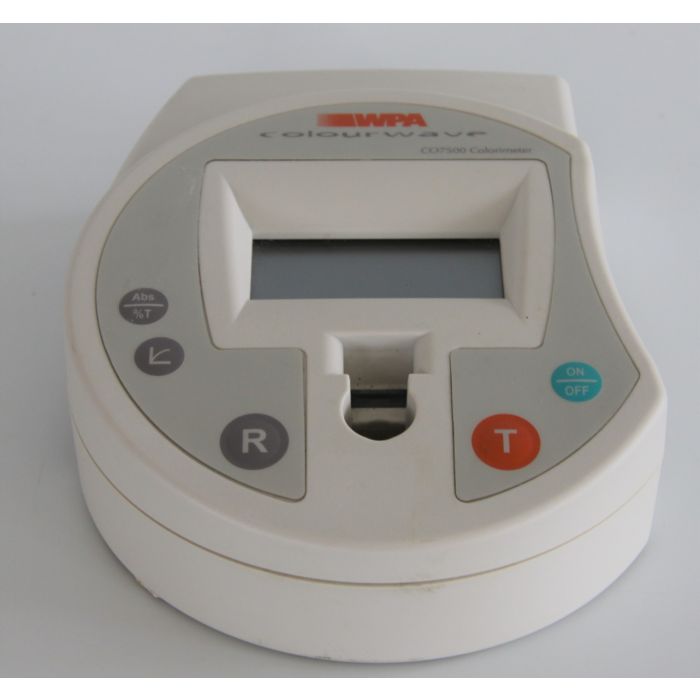

WPA colourwave CO7500 Colorimeter

WPA colourwave CO7500 Colorimeter

Single beam filter based colorimeter covering 440-680nm
Rugged, portable and easy to use
Excellent value for money and ideal for educational applications.
Absorbance, %Transmission and simple kinetic measurements
Rechargeable battery version available

Description
Biochrom has helped to educate scientists in spectrophotometry for over 30 years. Our Biochrom WPA brand of spectrophotometers and colorimeters are used by schools, colleges and universities worldwide to educate the next generation of scientists.

Designed for science education
The Biochrom WPA CO7500 colorimeter is a value for money instrument that has been designed for use in educational establishments such as schools and colleges. It is compact, lightweight and ergonomically designed to withstand student use! This makes it ideal for use in busy teaching laboratories. The large display is easy to read and the instrument is simple to both set up and use, giving rapid results. The samples can be measured in either standard or semi micro 10mm pathlength cuvettes or in 16mm diameter test tubes (adapters for 10/12 mm test tubes are available). Available in mains only or mains /internal rechargeable NiMH battery versions.

Versatile
Measures Absorbance, % Transmission and simple kinetics. When used in kinetics mode - to study rates of reaction, for example - the CO7500 colorimeter takes readings approximately every second and these can be sent to a chart recorder (via the analogue output) if required. Alternatively, the results could be downloaded to an Excel spreadsheet for graphing and other manipulation using the appropriate accessories.

Low maintainance
The CO7500 colorimeter is designed to make life easier for technical staff, and to be low maintainance under demanding conditions. The eight filters (440, 470, 490, 520, 550, 580, 600 and 680nm) are encased in an integral filter wheel so filters cannot be accidentally lost or damaged. With no lid needed, this robust instrument is easy to use, clean and store. There is a drain hole at the bottom of the cell compartment so that spillages do not affect the instrument. Lamp life is extended as it is only on during the measurement cycle. Spare lamps are available and easy to install.

Specification Data
Type Visible
Wavelength Range 440 - 680nm
Wavelength Accuracy (+/-) n/a
Wavelength Reproducibility (+/-) n/a
Lamp Source Tungsten Halogen
Beam Single Beam
Optical System Filters
Bandwidth 40nm
Detector Diode
Photometric Range -0.3 to 1.99A, 0-199%T
Photometric Accuracy <+/- 0.05A at 1A using neutral density filters
Photometric Reproducibility 0.02A at 1A in 10mm cuvette
Stray Light <1%T at filter wavelength
Stability n/a
Measurement Type Fixed Wavelength (Abs/%T), kinetics
Cell Compatibility Cuvette 10mm
Other Sample Containers Test tube * (10, 12, 16mm)
Cell Holder Single Cell
Accessory Options Printer*
Method Storage n/a
Compliance CE
Data Output Print*, Export to PC*
Display LCD
Data Interface Serial, Analogue
Languages English, Manuals in French, German, Italian and Spanish
Power Requirement 110-220V, 50/60Hz, 20VA
Weight 0.6 Kg (1.2lb)

Dimensions (WxDxH) 15 x 18 x 6cm

pdf manual

Serial#'s 7704
                8496
                8499
