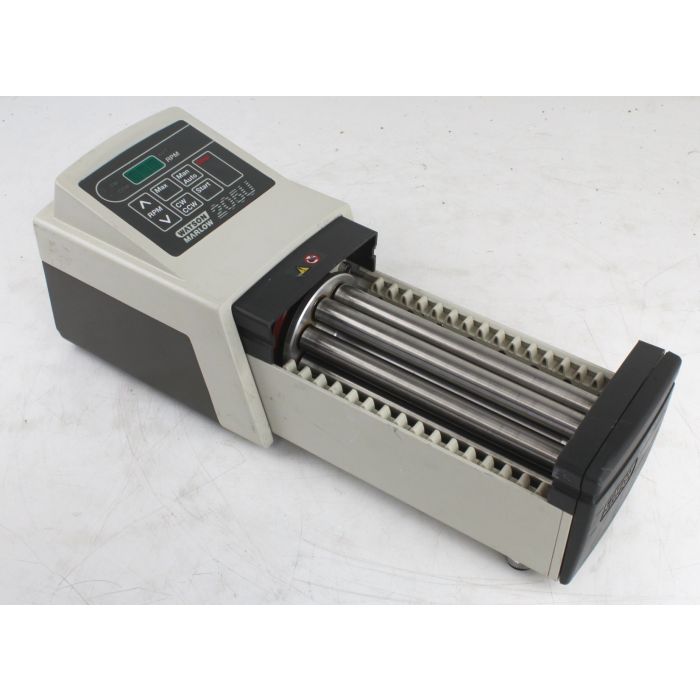

Watson Marlow 205U Multi channel cassette pump

Watson Marlow 205U Multi channel cassette pump



The 200 series multi-channel scientific pumps provide high-precision pulsation-free pumping.



205U auto and manual control variable speed pump.



Fitted with tachometer-controlled servo-quality DC motor for precise speed control. A keypad lock prevents tampering or accidental changes and there is a maximum high speed priming function.



Flow control for each individual channel is provided by multi-turn "click-stop" pressure adjustment on each cassette. The 205CA pumphead with its snap-fit cassettes and sprung track is factory-set for standard applications,but lockable occlusion adjustment allows settings to be optimised when necessary and, uniquely, remain undisturbed during tube changes. 0-5V DC tachometer output for speed monitoring, 5V auxiliary output for motor run indication. Remote low voltage, or TTL (PLC compatible) control of start/stop and direction.



Selectable dual voltage 100-120V or 220-240V 50/60Hz operation

Flow rates from 0.0006 to 22.0 ml/min
25 pin D connection for analog control
Auto/manual select through keypad
5V square wave or analog tacho output
Manual speed control
LCD display of  pump speed
Remote speed control via analog signals up to 30V or 32mA or potentiometer
Auto restart and keypad lock functions
Manual control of stop/start, direction and priming via membrane keypad
Fitted with 205CA 8-roller low pulse pump head
Remote operation of stop/start and direction via contact or TTL switching
Accepts manifold  tube elements, 0.13mm to 2.79mm bore
Motor running/stopped status via 5V Hi/Low signal output
Instant stops and reverse
