Waters 996 Photo Diode Array Detector HPLC

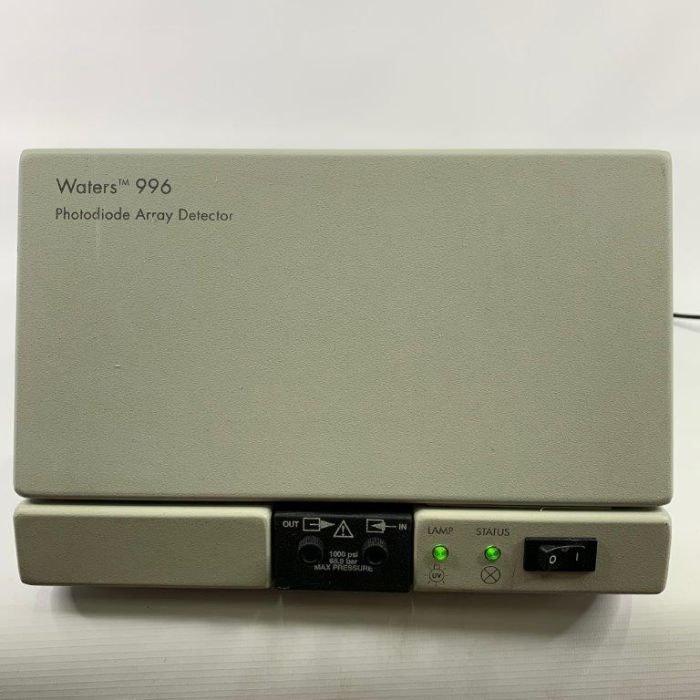

Waters 996 Photo Diode Array Detector

The Waters 996 HPLC Photodiode Array Detector can be used for both detection and identification of compounds, making it the most sensitive and versatile HPLC photodiode array detector available.

This unit powers up with Lamp & Status lighting up green. Otherwise good clean cosmetic condition. Images form part of description. Includes power cord. No software included. Covered by our 3 month warranty (see details below).

Specification:

• Wavelength Range – 190 to 800 nm
• Wavelength Accuracy – ±1 nm
• Linearity Range – 5% over -0.1 to 2.0 AU
• Spectral Resolution – 1.2 nm per photodiode
• Baseline Noise – 5 x 10 -5 AU peak-to-peak
• Drift – 1 x 10 -3 AU/hour at 254 nm (after warmup)
• Operating Temperature – 4 to 40°C (39° to 104°F)
• Operating Humidity – 20 to 80% non-condensing
• Flow Cells:
• – Standard Pathlength: 10 mm
• – Semi-Preparative Pathlength: 3 mm
• – Microbore Pathlength: 6 mm
• – Inert Pathlength: 10 mm
• Electric supply – 230V, 50/60 Hz

Location C3
