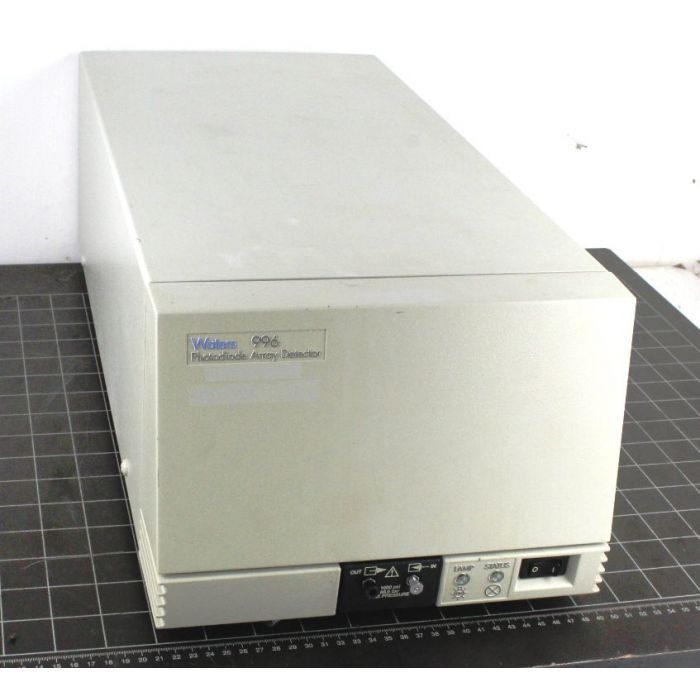

Waters 996 Photo Diode Array Detector

The Waters 996 HPLC Photodiode Array Detector can be used for both detection and identification of compounds, making it the most sensitive and versatile HPLC photodiode array detector available. The Waters 996 Detector optics bench contains a 10 mm, 8 uL Taperbeam flow cell which reduces baseline noise while maximizing the response with a long pathlength and a small cell volume. The use of elliptical mirrors increases light transmission giving noise performance of ±1.5 x 10-5 AU with a slit that is optimized for 1.2 nm optical resolution.  The photodiode array detector is the only "No Compromise" PAD available today with excellent sensitivity, linearity, optical and chromatographic resolution.

Wavelength Range 190 to 800 nm
Wavelength Accuracy ±1 nm
Linearity Range 5% over -0.1 to 2.0 AU
Spectral Resolution 1.2 nm per photodiode
Baseline Noise 5 x 10 -5 AU peak-to-peak
Drift 1 x 10 -3 AU/hour at 254 nm (after warmup)
Operating Temperature 4 to 40°C (39° to 104°F)
Operating Humidity 20 to 80% non-condensing
Flow Cells Standard Pathlength: 10 mm
                  Semi-Preparative Pathlength: 3 mm
                  Microbore Pathlength: 6 mm
                  Inert Pathlength: 10 mm

Note the Waters requires Millenium, EmPower or Masslynx software to control/acquire data, this software is not included in the sale.

PDF Manual

Dimensions  (56 x 29 cm)

Serial# F99996

Part# WAT057002

100-240V 50/60 Hz
