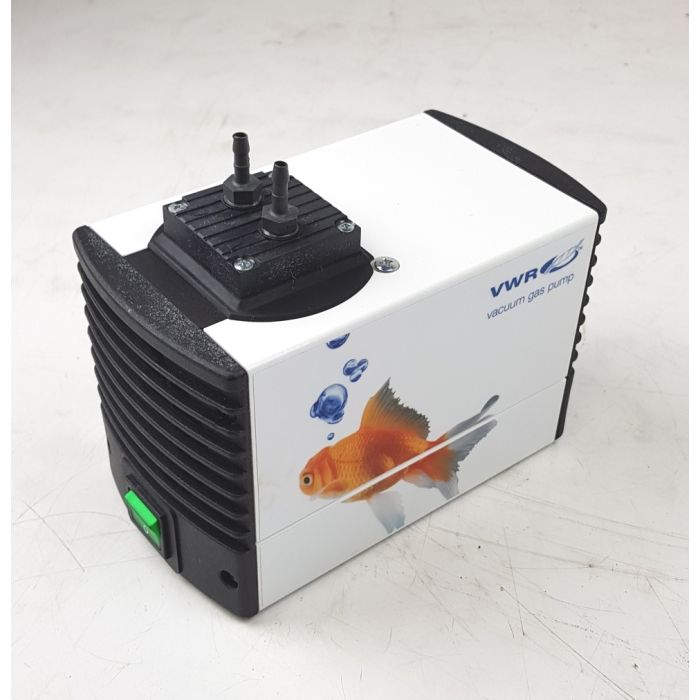

VWR Mini Laboratory Pump - VP 86

VWR Mini Laboratory Pump - VP 86

Single head, dry running diaphragm pump for a wide range of laboratory applications. It pumps, compresses and evacuates without affecting media, i.e. media remains uncontaminated. Includes diaphragm with patented tension optimisation, which allows the pump size to be smaller and extends the service life of the diaphragm.

100% oil-free pumping, so media is not contaminated when pumping, evacuating or compressing
For neutral to mildly aggressive gases and vapours
Maintenance-free, quiet runnin

@Flow rate at atmospheric pressure

Specification:
Model PM20405-86.18
Flow rate (l/min) 6*
Working overpressure (bar) 2,4
Vacuum (mbar) 250
Final pressure (abs.) (mbar) 100
Protection class IP 20
W×D×H (mm) 90×164×141
Weight (kg) 1,9

Power: 230V 50Hz

2016 Model

Serial# 2.9006434
