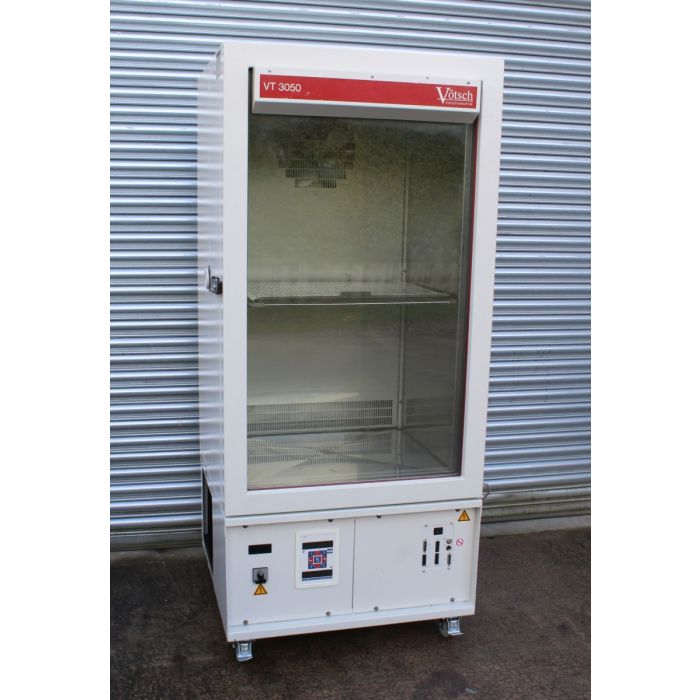

VOTSCH VT 3050 ENVIRONMENTAL CHAMBER

VOTSCH VT 3050 ENVIRONMENTAL CHAMBER

Temperature chamber Technical data:
Test space volume: 500 Liter
Temperature range: -30/+100°C
Temperature fluctuation: +-0.5K Deviation in space: +-1.5K Temperature gradient: 3K
Temperature rate of change: Heating: 2.0K/min Cooling: 1.4K/min
Heat compensation max: 650 W
Calibrated values: +23°C/+80°C
Test space dimensions: Width: 710mm Depth: 590mm Height: 1250mm
External dimensions mm width 940/depth 1030/height 1955
Noise level: <60 dB(A)
Rated power: 1.9 kW
Electrical connection: 1/N/PE AC 230 V +- 10%, 50 Hz.

Adjustable software temperature limiter min./max.
– Independent, adjustable temperature limiter tmin./tmax.
– Potential-free contact
– Test space illumination
– Mobile design
– 1 entry port 80 mm
– 1 stainless steel shelf
– Air-cooled refrigeration unit
– WKD calibration of 2 temperature values
– Ethernet interface
– Multi-language 3.5“ touch panel (German, English, French, Spanish, Polish, Czech, Russian, Chinese, Korean)

Serial# 521/83208

DOM 1997

Pdf manual
