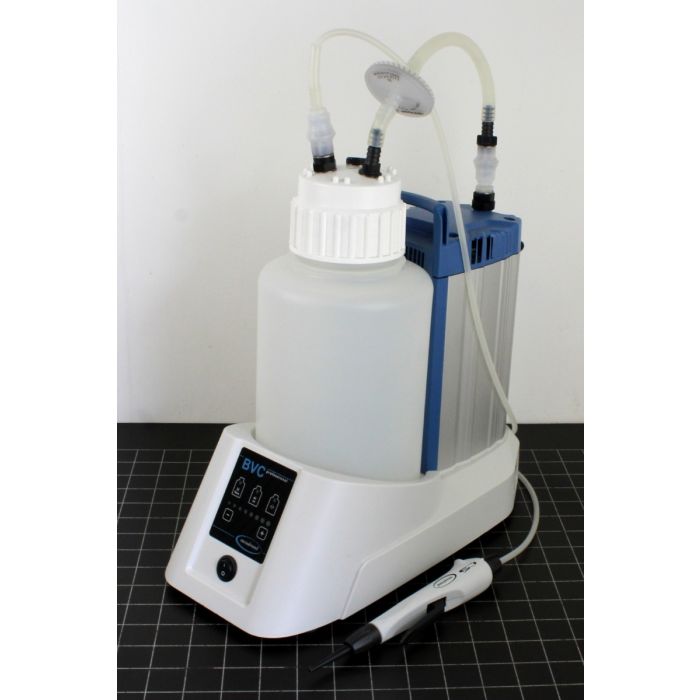

Vacuubrand Fluid aspiration system BVC professional

Vacuubrand Fluid aspiration system BVC professional

The BioChem-VacuuCenter BVC professional serves for aspiration and disposal of biological fluids, providing outstanding levels of comfort and safety for working with biological and biohazardous materials. A non-contact sensor monitors the liquid level in the collection bottle electronically and prevents overfilling. A disinfection routine allows the suction of disinfectants through aspiration hand set and tubing after switching off the pump, and so supports demanding safety protocols. The BVC professional with 4l PP bottle with self-closing quick couplings minimizes risk in transporting hazardous waste and of contamination in the workplace.

Vacuum controller Touchpanel
Number of heads / stages 1 / 1
Max. pumping speed at 50/60 Hz m3/h 0.7 / 0.85
Max. pumping speed at 50/60 Hz cfm 0.4 / 0.5
Ultimate vacuum (abs.) mbar/torr 150 / 112
Control range 150 - 850 mbar (adjustable)
Collection bottle 4l Polypropylene
Ambient temperature range (operation) °C 10 - 40
Ambient temperature range (storage) °C -10 - 60
Max. back pressure (abs.) bar 1.1
Inlet connection Suction controller
Outlet connection Hose nozzle DN 8 mm / silencer
Rated motor power kW 0.04
Rated motor speed at 50/60 Hz min-1 1500/1800
Degree of protection IP 40
Dimensions (L x W x H) mm 408 x 194 x 500
Weight kg 7.3
Noise level at 50 Hz, typ. dBA 45

Serial# 41761509
41761511

PDF Manual
