TSI 5825 DP-Calc Micromanometer

TSI 5825 DP-Calc Micromanometer

Simple-to-operate, handheld digital micromanometer
Measure differential and static pressure from –15 to 15 in. H2O (–3735 to 3735 Pa)

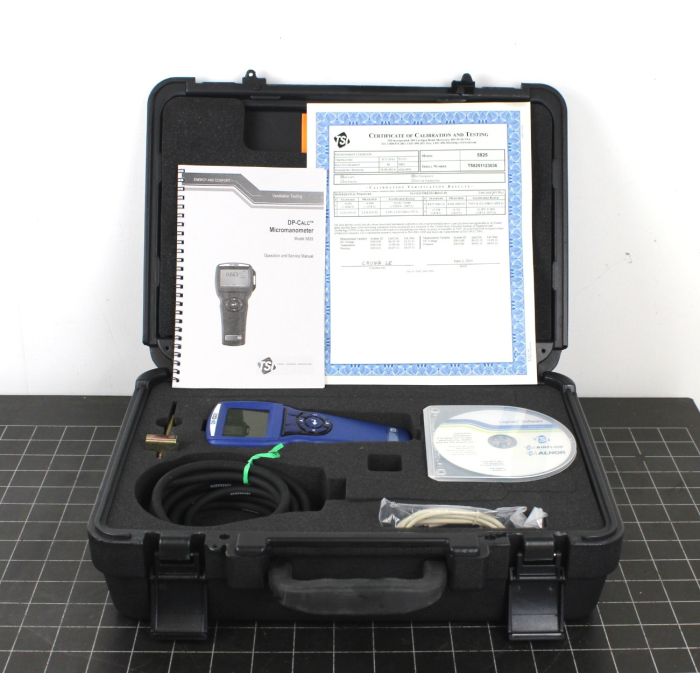

INCLUDES
Hard carrying case, manual, calibration certificate supplied by the manufacturer, and 4 AA batteries.

MORE ABOUT THIS ITEM
The DP-CALC™ micromanometers allow you to easily make fast, accurate differential and static pressure measurements. These robust instruments can also calculate and display velocity when using an optional pitot tube.

Max Air Velocity (ft/min)15500
Min Air Velocity (ft/min)250
Air Velocity Resolution1 ft/min (0.1 m/s)
Air Velocity Accuracy±1.5% at 2,000 ft/min (10.16 m/s)
Barometric Pressure Resolution0.001" H₂O, 0.01 mmHg, 0.1 Pa
Barometric Pressure Accuracy±1% of reading ±0.005" H₂O
Data LoggingYes
Data Storage (samples)12,700 samples and 100 test IDs
Logging Intervals1 second to 1 hour
Width (in)3 Height (in)2 Length (in)7
BatteryFour AA (included)

Original Manual, software Cd etc

Serial# T58251123036
