Total Phase Beagle I2C / SPI Protocol Analyzer

TotalPhase Beagle I2C/SPI Protocol Analyzer

TP320121

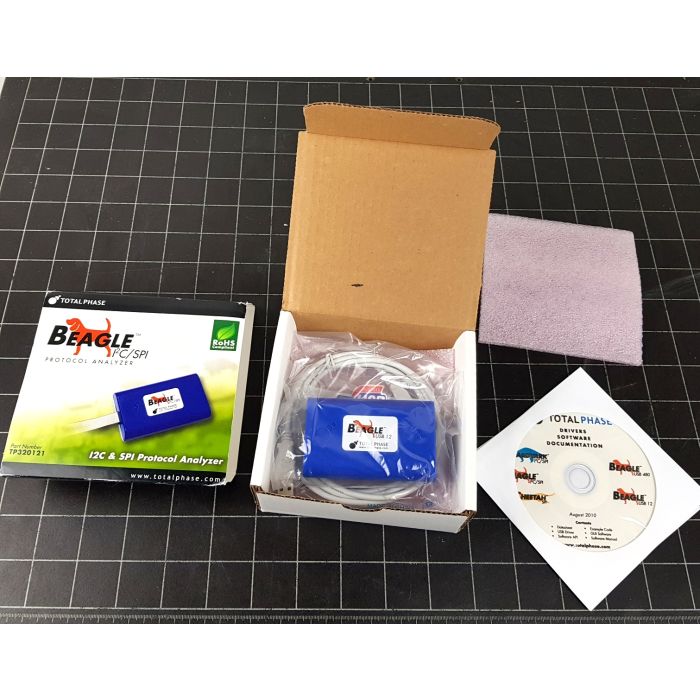

pre owned , however unused, new in manufacturers box

Non-intrusive bus monitor for embedded engineers working on I2C- or SPI-based products.
The Beagle analyzer provides a high performance bus monitoring solution in a small, portable package.
Perfect for engineers in the field and in the lab.

Overview

Non-intrusively monitor I2C up to 4 MHz
Non-intrusively monitor SPI up to 24 MHz†
Non-intrusively monitor MDIO up to 2.5 MHz (Clause 22 and Clause 45)‡
Real-Time Data Capture and Display - Watch I2C, and SPI packets as they occur on the bus.
Bit-level timing down to 20 ns resolution.
Fully Windows, Linux, and Mac OS X compatible
Includes full function monitoring tools
Low Cost

† Actual SPI capture performance is dependent on CPU speed and SPI bus throughput. 24 MHz SPI capture has been tested for typical applications (e.g., captures of a few hundred SPI packets). Depending on user configuration, the maximum achievable capture throughput for continuous streaming applications may be less than 24 MHz.

‡ MDIO monitoring is available in the current versions of the API and version 2.20 of Data Center, which can be downloaded from the Data Center Product Downloads section.
What is Included

Beagle I2C/SPI Protocol Analyzer unit
(1) 6 foot USB A->B cable
Software (downloadable from website):
Windows USB Drivers
Linux USB Hot Plug Configuration files
Data Center Software
Beagle LabVIEW Driver
Beagle Software API
Rosetta Language Bindings: C/C++, C#, .NET, Python, Visual Basic
Examples
Datasheet
Documentation
User Manual
Quick Start Guide
