Thermo Wellwash 4 Mark 2

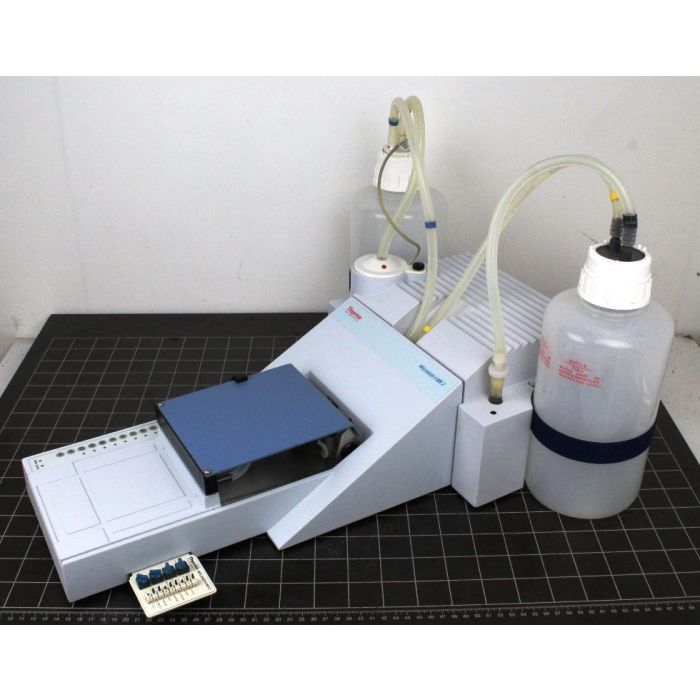

The Wellwash 4 Mk 2 is a semiautomatic microplate washer, comprising pump and washer units.

The Wellwash 4 Mk 2 is a microplate washer for 96-well plates. It can be used in research or routine-test laboratories by trained personnel to wash Microtiter microplates and strips in 96-well plate format that meet the SBS standards.

The instrument provides the following wash functions initiated through the keypad and control switches or a preprogrammed wash card:
1. Liquid dispensing into wells (microplate or microstrip)
2. Liquid aspiration from wells (microplate or microstrip)

With their unique and proven design, the coaxial wash heads of the Wellwash 4 Mk 2 ensure excellent washing efficiency and low residual volumes of less than 5 µl. For clean delivery of washing buffer, the inner dispensing tubes are made of stainless steel. A continuous vacuum in the outer tube prevents cross contamination and ensures complete liquid removal.

For fast and accurate selection of routine protocols, the Wellwash 4 Mk 2 comes with four standard program cards (1 to 4 washing cycles) as well as a programmable card. This switch card permits a quick selection of all wash parameters, including soak times and final wash protocols.

The quick release bottle caps of the Wellwash 4 Mk 2 ensure easy buffer changes.
An additional rinse bottle can be connected, making it easier to purge wash buffer from the wash head or change to a different wash buffer. Automatic pump shutdown reduces wear and noise levels. If unused for 30 seconds, the wash pump of the Wellwash 4 Mk 2 automatically switches off.

Serial# 006-9-10212

PDF Manual
