Thermo Scientific Masterflex P/S 1400 Series General Purpose Digital Peristaltic Pump (1400-1620)







Thermo Scientific Masterflex P/S 1400 Series General Purpose Digital Peristaltic Pumps are designed to handle a wide range of fluids from the highest purity to extremely caustic solutions.
They are utiliized in a broad range of critical applications—from agriculture to chemical processing, and from chemical feed to filtration. These general purpose pumps provide precise resetting of speed control and the option of controlling the pump flow from a remote signal. They also meet the stringent safty requriement for ETL, c ETL, CE, and RoHS

.
Easy to Use

Intuitive control keypad uses common control symbols to indicate functions
Accurate, reliable control of flow—digital display of RPM for accurate control
Universal voltage—operate anywhere in the world. Unit accepts power cord set with IEC320 plug to adapt to local electricity
Quick start guide included for faster set-up



Easy to Maintain

Low maintenance with minimum downtime—change tubing in less than 30 seconds
Splash-resistant front panel
Separate start/stop control allows you to maintain your flow setting when powering down

Diverse Performance Range

Deliver flow rates from 0.06 to 3400 mL/min with Masterflex P/S pump heads
Cartridge pump flow rates: 0.001 to 1700 mL/min.
Choose from three speed ranges for optimum control
±0.25% speed control for greater accuracy
Interface with other instrumentation remote control capability



Ergonomic Design

Portable—motor and controller in one convenient package
Molded handle for easy one-handed portability
Space efficient—stackable design with a small foot print
Meets or exceeds ETL, cETL and RoHS



Electrical Specifications

Voltage (AC) 60/50Hz Universal input 90 to 260VAC 60/50Hz
Current 2.2A & 115V; 1.1A & 230V
Motor Type PMDC
Motor Size 1/10 HP (75W)
Control Type PWM (Pulse Width Modulated)
Display (rpm) Seven-segment, 3-digit, Blue LED, 1rpm resolution (0.1rpm for 1 to 100rpm)
Speed regulation ±0.25%
Reversible Yes
External Control - Input 4-20mA; 0-10V; Remote/Local; Dir (CW/CCW); Start/Stop

Physical Specifications
Housing and pump head Housing: ABS; Powder-coated aluminum
IP rating IP33
Agency approvals ETL, cETL, CE, RoHS
Storage temperature -25° to +65°C
Operating temperature 0° to 40°C



Dimensions (L x W x H) 26.7 x 20.3 x 20.3cm

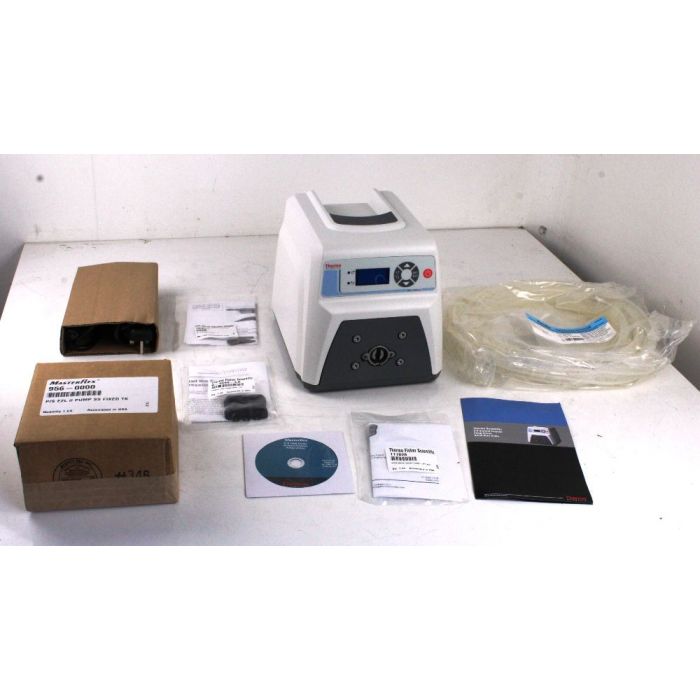

All original manuals/CD



Serial# M13002939
