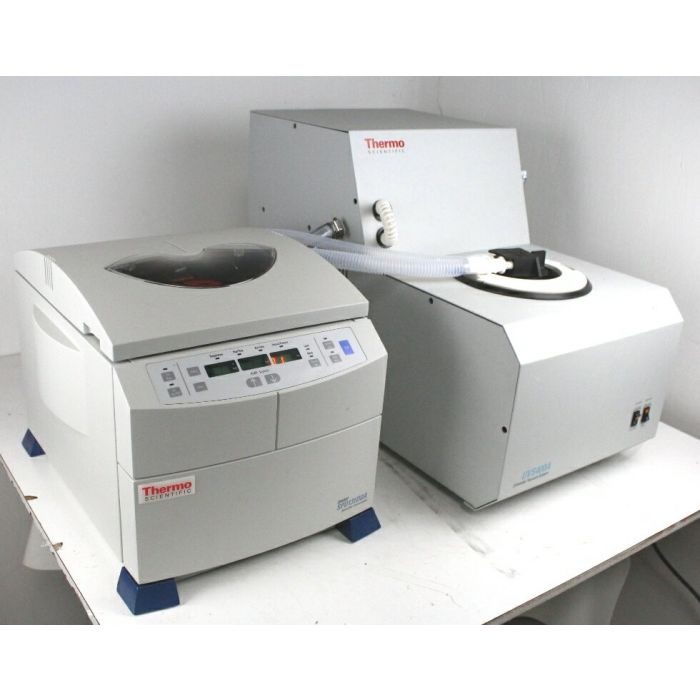

Thermo Savant SpeedVac Concentrator and Thermo Universal Vacuum System UVS400A

Thermo Savant SpeedVac Concentrator and Thermo Universal Vacuum System UVS400A

Evaporate strong acids, bases and aggressive organic solvents with the Thermo Scientific™ Savant™ SPD131DDA SpeedVac™ Concentrator. Approved for combinatorial chemistry, this concentrator incorporates a new slim, modular design with digital programming for enhanced usability.

Features:

Adjustable vacuum level to prevent samples from freezing
Chemical-resistant dual automatic bleeder valves
Radiant glass cover for excellent chemical resistance and additional heating for faster drying
Digital display of parameters for easy, reproducible selection
Independent timers for both heat and run
PTFE tubing
Deep PTFE-coated chamber and vapor pathway for superior chemical resistance and easy cleaning
Accepts all standard small SpeedVac™ rotors and also a two-place microtiter plate rotor
Chamber Material PTFE
Temperature Range (Metric) Adjustable from 45° to 80°C, off
Bleeder Valve Dual
Description 230V 50Hz
Exhaust Port Size Oversized
Height (English) 13 in.
Height (Metric) 330mm
Hertz 50Hz
Infrared Chamber Lamps 2
Length (English) 18 in.
Length (Metric) 450mm
Magnetic Assembly SUMAXSPD
Max. Microplate Capacity 2 deepwell, 6 shallow well
Standard Cover Heated Glass
Vacuum Control 0.1 to 20 torr
Voltage 230V
Weight (English) 44 lb.
Weight (Metric) 20kg
Width (English) 14 in.
Width (Metric) 360mm
Dimensions (L x W x H) 18 x 14 x 13 in. (450 x 360 x 330mm)
Electrical Requirements 230V 50Hz

Thermo Universal Vacuum System UVS400A

Safely handle and recover solvents with the Thermo Scientific™ Savant™ Universal SpeedVac™ Vacuum System, equipped with an easy to use, wide-mouth glass condensation flask. This single integrated unit combines an oil-free vacuum source and refrigerated vapor trap, and can be connected to any of the concentrators to provide a complete SpeedVac system.

Features:
Low maintenance, oil-free and corrosion resistant system
Wide mouth glass condensation flask with self-sealing cover
Small footprint
Single stage refrigeration system
Efficient operation with all SpeedVac concentrators, gel dryers and other vacuum-dependent equipment
Optional post trap (model no. ANT100) may be added to neutralize ammonia or acid
Chemical trap (model no. DTK120R) may be added to absorb volatile radioactivity and residual vapor

Description Universal vacuum system with refrigerated vapor trap; UVS400; For use with SPD111V and SC210A; -55°C; 230V/50 Hz
Capacity 4L
Hertz 50Hz
Shipping Height (English) 18 in.
Shipping Height (Metric) 450mm
Shipping Length (English) 24 in.
Shipping Length (Metric) 600mm
Shipping Weight (English) 113 lb.
Shipping Weight (Metric) 51kg
Shipping Width (English) 14 in.
Shipping Width (Metric) 250mm
Temperature -55°C
Voltage 230V
For Use With SPD111V and SC210A
Electrical Requirements 230V 50Hz

PDF Manual
