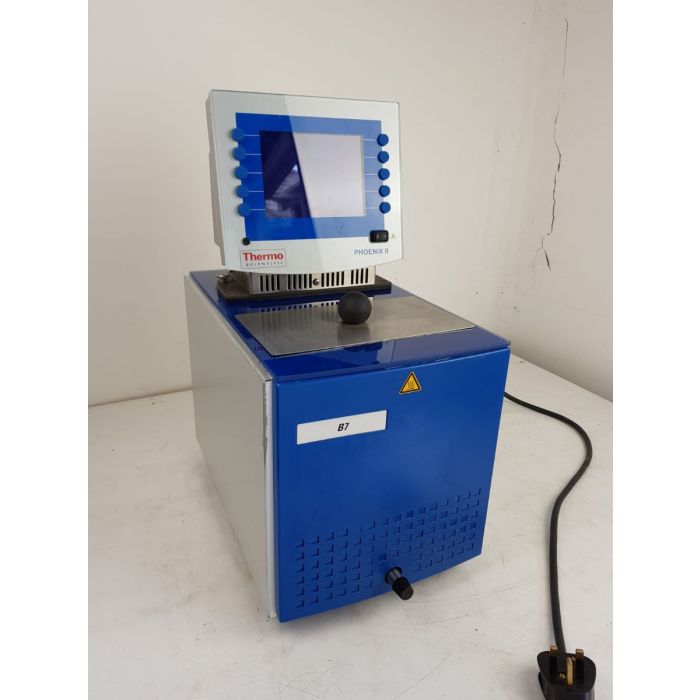

Thermo Phoenix 11 Open Bath & Heating Circulator

Thermo Phoenix 11 Open Bath & Heating Circulator

Phoenix II P1 with a 2 kW (230V) heating capacity, up to 250°C.

Slim-line heating circulator with a deep 7-liter bath for temperature controlling open and closed systems; high temperature accuracy for
medium-size external systems.

Innovative materials combined with sophisticated technology and advanced design form the basis of the HAAKE Phoenix II circulators.

The simple operation of the units is ensured by the large graphic display that incorporates plain text dialog and a simple user interface.

The Phoenix II P1 circulators come equipped with a powerful pressure and suction pump, feature a heating capacity of up to 2000 W and a maximum bath temperature of +250°C and are thus ideally suited to meet the extreme technical specifi cations that many applications require.

Simple to Operate
The menu structure for all digital units enables intuitive operation and is supported by the simple allocation of the individual functions to the operating keys.

Innovative Control
High temperature accuracy and the ability to reach the set temperature quickly even under difficult conditions is made possible by the
new Fuzzy-Star control system.

Many Additional Functions
Additional functions such as the Real Temperature Adjustment (RTA), the Fault Identification System (FIS), the External Temperature Control
(ETC) and the Turbulence Reduction System (TRS) make operation easier for the user.

Flexible Communication
Connecting the units to PCs or within networks is simple due to a range of different interfaces

Dims 25cm (W) x 38cm (D) x 50 cm (H)

PDF Manual

Serial# 08000119 002
