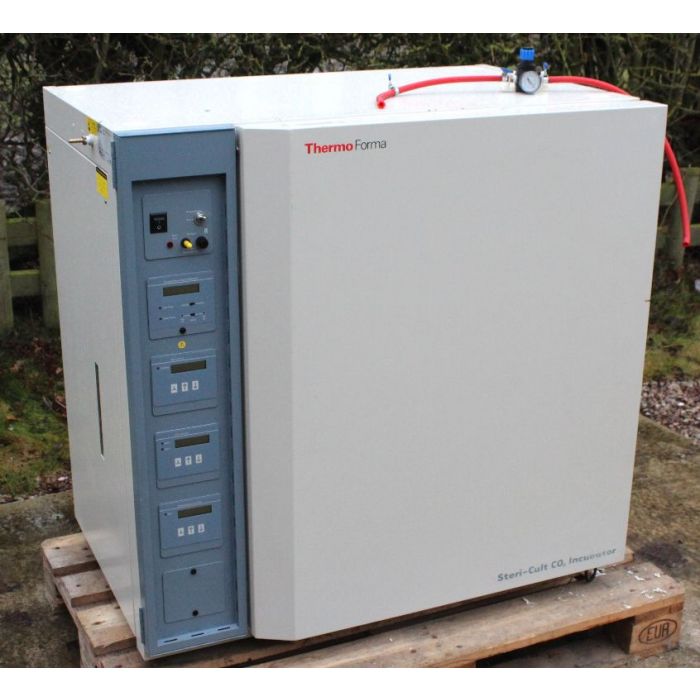

Thermo Forma 3035 Steri Cult CO2 Incubator





Reliable, accurate, and simple to operate, Thermo Forma Steri-Cult CO2 Incubators use proven HEPA filtered, vertical laminar airflow techniques and a filtered external water supply to minimize contamination and desiccation of cultures.



Fully tested and time-proven infrared (IR) CO2 technology provides precise control over the 0-20% range.
Auto-zero function automatically calibrates CO2, ensuring accuracy.
CO2 level is maintained and complicated calibration procedures are eliminated.
Reliable IR sensor maintains a consistent CO2 level independent of temperature and humidity.
Two inches (5.1cm) of polyurethane insulation provide an R value of 16, and surround the air jacket to reduce heat loss and insulate the chamber from ambient conditions.
Innovative humidity supply system, located outside the chamber, provides rapid RH recovery.
Audible/visual alarms indicate CO2 deviations 1.0% above or below the setpoint. Standard alarm delays avoid
“nuisance alarms” during door openings. Audible alarms can be silenced with 30 minute ringback.
Auto-zero alarm function ensures proper CO2 calibration.

Features:
- 297 liter Volume
- Control of temperatur, CO2 and humidity
- Active Humidifaction System
- 100% HEPA filtration for rapid class 100 air quality
- stackable for opimized footprint



Temperature
Control . . . . . . . . . . . . . . . ±0.1C
Range . . . . . . . . . . . . . . . . 4C above ambient to 45C (113F)
Sensor . . . . . . . . . . . . . . . . Platinum
Controller . . . . . . . . . . . . . Microprocessor
Setpoint . . . . . . . . . . . . . . . Digital
Display . . . . . . . . . . . . . . . Digital LCD
Readability . . . . . . . . . . . . 0.1C
Setability . . . . . . . . . . . . . . 0.1C
Uniformity. . . . . . . . . . . . . ±0.3C @ 37C (98.6F)



CO2
Control . . . . . . . . . . . . . . . Better than ±0.1%
CO2 Range. . . . . . . . . . . . . 0-20%
Calibration. . . . . . . . . . . . . Auto-zero
Inlet Pressure. . . . . . . . . . . 10 PSIG (0.7 bar)
Filter . . . . . . . . . . . . . . . . . 0.2 micron, disposable
Sensor . . . . . . . . . . . . . . . . IR
Controller . . . . . . . . . . . . . Microprocessor
Setpoint . . . . . . . . . . . . . . . Digital
Display . . . . . . . . . . . . . . . Digital LCD
Readability . . . . . . . . . . . . 0.1%
Setability . . . . . . . . . . . . . . 0.1%
Alarm Differential . . . . . . . ±1.0% (nomina) for approximately 30 minutes
and Delay



Controlled RH
RH . . . . . . . . . . . . . . . . . . Ambient to >95% RH @37C (98.6F)
Humidity Control . . . . . . . ±2.0%
Sensor . . . . . . . . . . . . . . . . Platinum
Controller . . . . . . . . . . . . . Microprocessor
Setpoint . . . . . . . . . . . . . . . Digital
Display . . . . . . . . . . . . . . . Digital LCD
Readability . . . . . . . . . . . . 0.1%
Setability . . . . . . . . . . . . . . 0.1%
Humidity Reservoir . . . . . . 1.0 gal. (3.8 liters)



Dims EXT 68cm (D) x 102cm (W) x 100cm (H)
         INT 52cm (D) x 69cm (W) x 84cm (H)



PDF Manual



Serial# 300641-1950
