Thermo Fisher Scientific Haake TC300 Recirculating Chiller

Thermo Fisher Scientific Haake TC300 Recirculating Chiller



Thermo Scientific Haake recirculating chillers are ideal for applications requiring heat removal across a wide temperature range. With a temperature range from 5°C to 35°C, the Merlin chiller platform provides powerful cooling in a reliable and compact design.



Controlled Pressure
A pressure gauge is built-in as standard in every TC chiller. The working pressure of the connected system is reliably shown in kPa, kg/cm2 and psi



Pressure as Desired
The pressure in the system can be adjusted as desired with the relief valve on the back of each unit. Controlling is carried out via the builtin pressure gauge



Digital Control
Set temperatures can be easily programmed via a pushbutton keypad. The values are shown on the digital display with 0.1°C resolution. High- and low-limit temperature values can additionally be set to ensure safe usage



Global compliance ensures user safety
Easy–to–use intuitive controller
Translucent reservoir enables quick viewing of fluid level
Removable grille allows for quick and easy preventative maintenance



Refrigerant R134A
Certifications/Compliance CE marked/UL listed
Electrical Requirements 230V/60Hz
Pump connections R 1/2
Temperature accuracy ±K 0.15
Cooling capacity at 20°C kW 2.45



Fitted with optional Communications Connector and Remote Start/Stop Connector.



Recommended for:
Biotech
Pharmaceutical
Laser
Laboratory
Analytical instrumentation
Printing
Semiconductor
Industrial
Medical



Serial# 108106036



Dims 57cm (D) x 40cm (W) x 65cm (H)



PDF Manual

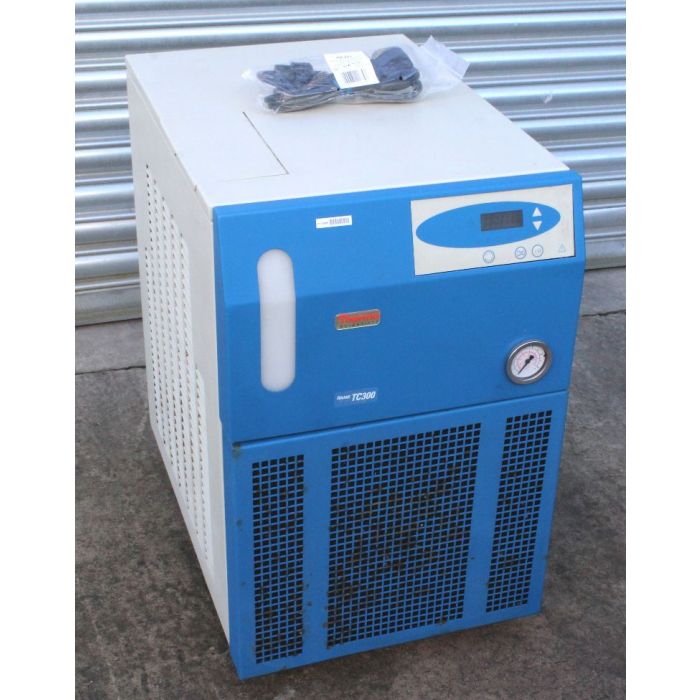

Note a little rust on the removable front grill as per main image
