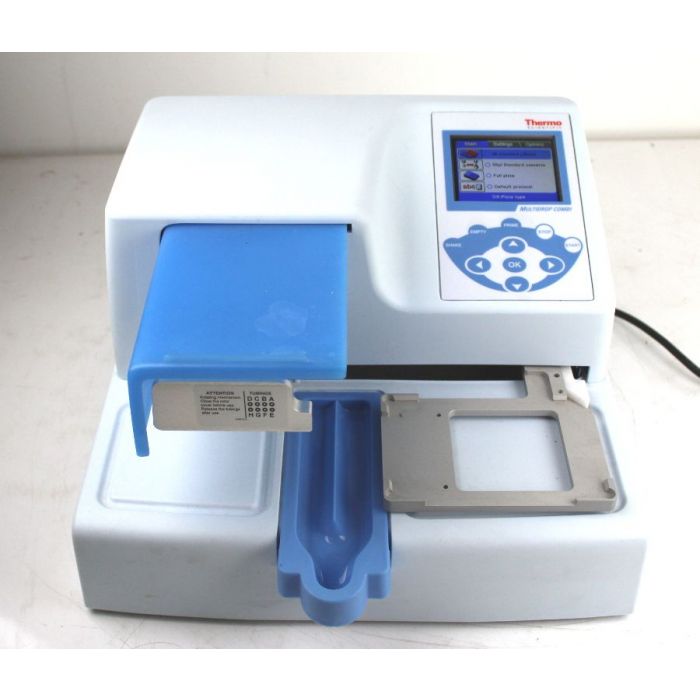

Thermo Combi Reagent Dispenser

Thermo Combi Reagent Dispenser



Meet your lab's specific needs with outstanding flexibility and performance with the easy-to-use Thermo Scientific™ Multidrop™ Combi Reagent Dispenser, designed to support the varied requirements of pharmaceutical and biotechnology laboratories. It combines the most versatile features for reagent dispensing with excellent performance for drug discovery or genomic and proteomic assays



Description
The Multidrop Combi Reagent Dispenser handles a wide selection of plates and volume range and provides fast dispensing and high-throughput operation.
Provides precise dispensing over a 0.5 to 2500µL range, ensuring reproducible assay data
Accommodates microplates from 6 to 1536 wells and plate heights of 5 to 50mm
Visual icon-based graphic display makes it easy to use and program, even without training
Minimal dead volume and back-flushing reduces reagent costs
Full robotic compatibility gives increased throughput
Uses eight-channel detachable and autoclavable dispensing cassettes that are standard across the Multidrop range

Recommended for:
Assay development
Primary and secondary screening
Compound storage
Genomics and proteomics research
PCR set-up
Sequencing set-up
Cell based assays
Bead based assays
ELISA assays

Plate Type 6- to 1536-well plates
Volume (Metric) Range Dispensing 0.5 to 2500µL
Dispensing Precision Small tube dispensing cassette: 2µL, ±10% (typical); 10µL, ±5% (typical); >10µL, ±5% (typical)

                                   Stand tube dispensing cassette: 5µL, ±3%(typical); 20µL, ±2% (typical); 100µL, ±1% (typical); >100µL, ±1% (typical)
Dispensing Accuracy Small tube dispensing cassette: 2µL, ±10% (typical); 10µL, ±5% (typical); >10µL, ±5% (typical)
                                   Stand tube dispensing cassette: 5µL, ±3%(typical); 20µL, ±2% (typical); 100µL, ±1% (typical); >100µL, ±1% (typical)
Dispensing Speed 96-well plate: 10µL in 3 sec.; 20µL in 4 sec.; 100µL in 10 sec
                              384-well plate: 1µL in 5 sec.; 5µL in 5 sec.; 10µL in 6 sec.; 20µL in 9 sec.
                              1536-well plate: 1µL in 14 sec.; 5µL in 26 sec.
Dispensing Increments Small tube dispensing cassette: 0.5µL increments 0.5-50µL
                                      Stand tube dispensing cassette: 5µL increments 5-2500µL
Volume (Metric) Dead <1mL volume range 0.5-50µL; <7mL volume range >50µL
Interface Serial RS-232, USB
Weight (Metric) 9.1kg
Width (Metric) 35.5cm  Height 22cm  Depth 33cm
Description Multidrop Combi
Hertz 50/60Hz
Electrical Requirements 100 to 240V 50/60Hz



PDF Manual



Note this item does not include dispensing cassetes or FILLit software which are available from Thermo



Serial# 836-1742



https://www.thermofisher.com/order/catalog/product/5840300
