Test Sample Injection Moulding Press Ray-Ran TSMP Benchtop
The Ray-Ran Test Sample Injection Moulding Press has been specifically designed to produce a wide variety of laboratory test samples such as colour plaques, tensile and impact test specimens as well as small components required for mechanical testing procedures. The unique low-cost moulding machine
has a compact design for vertical bench mounting, making the apparatus ideal for Research and Development Institutes, Universities, laboratories and small workshops.
The apparatus is pneumatically operated with inlet air pressures up to 10bar (150psi) which is adequate for moulding most materials including Polypropylene, Polyethylene and PET with injection pressures up to 450bar (6500psi).
Digital temperature controls up to 400 ̊C melt the polymer, which is then extruded into the mould.

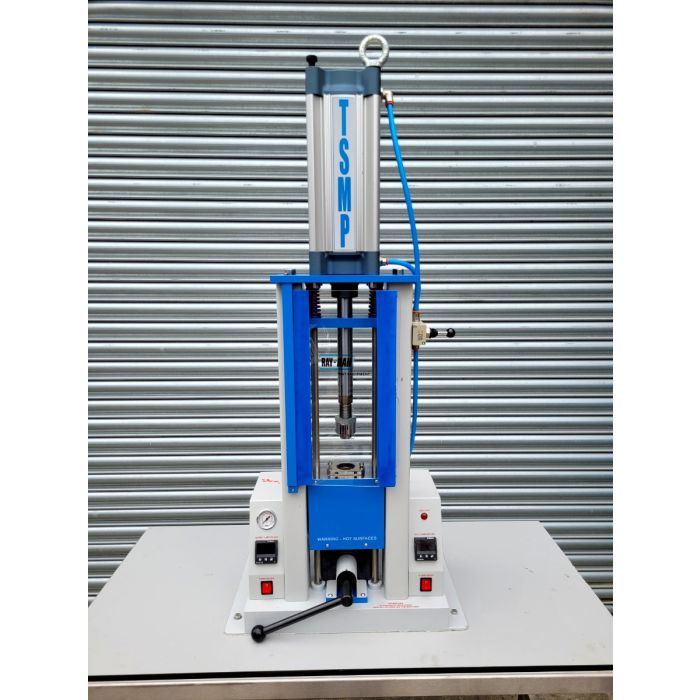

This press is in good working condition, images form part of the description.
Specification:
- Maximum air line pressure: 150psi/10bar
- Maximum polymer pressure: 6500psi/450bar
- Maximum shot size: 47cm3
- Dimensions: 52 x 36 x 111cm (w x d x h, inc legs)
- Weight: 55kg
- Electric Supply: 220-240VAC, 50/60Hz
| SKU | AS015 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
| Shipping | £95.00 |
