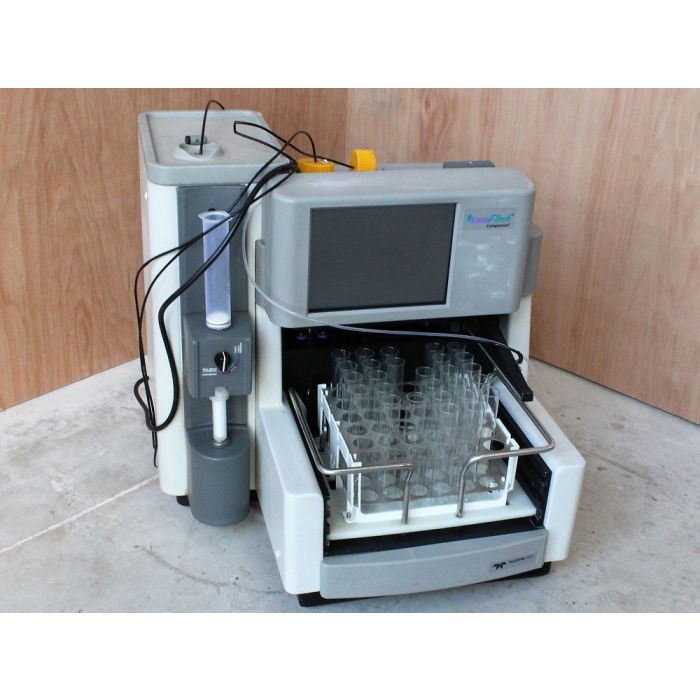

Teledyne Isco CombiFlash Companion T/S
The CombiFlash Companion personal flash chromatography system can be controlled or monitored from anywhere, using any internet connection with Microsoft Windows® Explorer. It can even send you an e-mail notification when your separation is done. The system’s advanced automation and communication capabilities offer a new dimension of “productivity with peace of mind”, freeing you to pursue other priorities without distraction while a purification is in progress. The Touch Screen controller lets you run the system locally from one easy-to-read screen. The optional Solvent Management module controls up to 4 solvents on line, and senses solvent levels so you’ll never run dry.
Companion uses precision packed RediSep® Rf columns to yield more pure compound in less time than any glass column or other disposable. Columns from 4 grams to 330 grams are quickly interchangeable with no additional hardware, for fast, easy scale-up from milligrams to tens of grams of purified sample.
CombiFlash Companion automatically senses the column size and programs itself with optimal conditions for that column. To initiate the run, you simply press "play". And because the software is specifically designed to meet the needs of purification rather than analysis, you can change method parameters with real-time control. If you want to change the gradient any time during a run, simply click a point on the gradient profile, and drag to the desired value to immediately modify the solvent mixture.
The CombiFlash Companion personal flash chromatography system can be controlled or monitored from anywhere, using any internet connection with Microsoft Windows® Explorer. It can even send you an e-mail notification when your separation is done. The system’s advanced automation and communication capabilities offer a new dimension of “productivity with peace of mind”, freeing you to pursue other priorities without distraction while a purification is in progress. The Touch Screen controller lets you run the system locally from one easy-to-read screen. The optional Solvent Management module controls up to 4 solvents on line, and senses solvent levels so you’ll never run dry.
Companion uses precision packed RediSep® Rf columns to yield more pure compound in less time than any glass column or other disposable. Columns from 4 grams to 330 grams are quickly interchangeable with no additional hardware, for fast, easy scale-up from milligrams to tens of grams of purified sample.
CombiFlash Companion automatically senses the column size and programs itself with optimal conditions for that column. To initiate the run, you simply press "play". And because the software is specifically designed to meet the needs of purification rather than analysis, you can change method parameters with real-time control. If you want to change the gradient any time during a run, simply click a point on the gradient profile, and drag to the desired value to immediately modify the solvent mixture.
Depth 54 cm
Height 49 cm
Width 49 cm
Power Requirements 100/117 VAC, 50/60 Hz; 234 VAC, 50/60 Hz
Weight 27.2 kg
Height 49 cm
Width 49 cm
Power Requirements 100/117 VAC, 50/60 Hz; 234 VAC, 50/60 Hz
Weight 27.2 kg
Samples per run: 1
Solvent delivery: Two maintenance-free, valveless metering pumps
Certification and compliance: CE, CSA, IMERC (LCD touch screen display contains Mercury, dispose according to local, state, or federal laws.)
Programmable gradients: 2 solvent isocratic, linear and/or step gradients; optional 4-solvent capability
RediSep Rf column sizes: 4g to 330g
Rated pressure: 50 psi (3.5 bar)
Liquid sample loading: Injection valve to load column directly
Solid sample loading: Solid load cartridge for low-solubility samples
On-line UV detection: Photodiode array absorbance detector (200 - 360 nm)
Fraction collection: Foxy fraction collector with 144 tube capacity, unlimited rack changes, optional 288 tube capacity
Optional tube sizes: Racks available for 12, 13, 16, 18, & 25 mm tubes, 480 ml bottles, and other containers
Solvent reservoir level sensing: optional
Serial No: 206E20196
DOM: 2006
DOM: 2006
Original Installation guide
| SKU | L023 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
