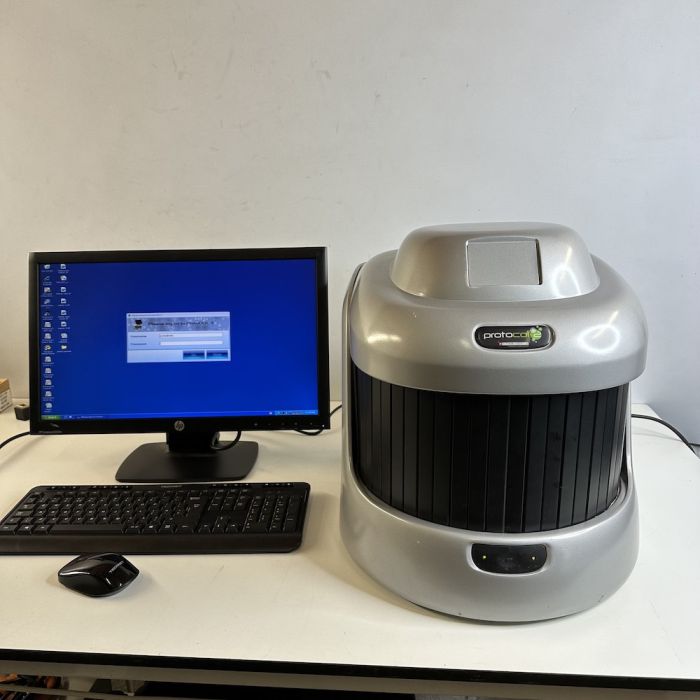

Synbiosis ProtoCOL 2 Colony Counter and Zone Sizing System

Synbiosis ProtoCOL 2 Colony Counter and Zone Sizing System

Features/Specification:

Construction: Ergonomic housing constructed in high density foam, Integral microprocessor, Integral CCD camera and lens, 17 in mounted touch screen monitor

Light Shield: 2 sliding doors to prevent excessive ambient light
Camera: 1.4 m pixel scientific grade CCD camera, USB integral camera with f1.2 lens
Resolution: For standard 90mm Petri dish, smallest detectable colony is 43 microns
Lighting: Unique 3 channel (red, green, blue) LED lighting (patent pending), Multi-array LED lighting (computer controlled), Lower lighting with upper reflective lighting for all applications
Processor: Integral microprocessor, Operating system Windows XP embedded
External connections: DVD RW, USB ports for mouse, keyboard and camera, 2 additional USB ports, External monitor connection, Ethernet, Sound output, 1394 firewire connection
Measurement modes: PC2 Count: Colony counting, pour plates;

Unable to function test as we don’t have password to open the operating software. Images form part of the description. Screen and keyboard not included.

Location G1
