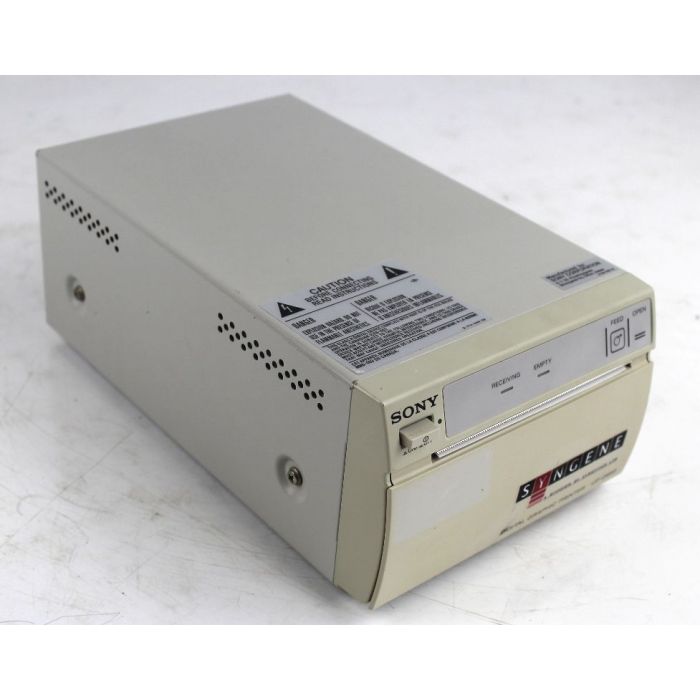

SONY UP-D895 Digital Graphic Printer

SONY UP-D895 Digital Graphic Printer



The  Sony UP-D895 is the Industry’s first Digital Monochrome A6 Medical grade printer with a USB interface. Near photographic, high glossy prints can be created by the combination of the UP-D895 printer and the UPP-110HG High Gloss Printing Paper. This printer features a 325 dpi thermal head with 256 levels of gray. A Resize-to-Fit feature enables the user to enlarge the image and print it in the desired size. With the UP-D895, panoramic-size prints can be produced making this printer ideal for the dental market. In addition, it’s equipped with a Parallel (IEEE 1284) interface as well as a USB interface to provide greater flexibility.



Resize-to-Fit feature enables the enlarging of the image for printing in the appropriate size.
Improved transfer time compared to the UP-D890. Image data manipulated in hardware.
Resolution of 325 dpi and 256 levels of gray for high picture quality.
High speed printing of approximately 3.8 seconds*.
Multiple print modes available for a variety of applications.
High quality, glossy, near photographic printing with the optional UPP-110HG High Glossy Printing Paper.
Space-saving design.
Worldwide power supply for AC 100 to 120, 220 to 240V.
Compatible with UP-D890 driver software.



Printing Method: Direct thermal printing.
Thermal Head: Thin film thermal head 1280 dots.
Gradations: 256 grey levels.
Resolution: 325 DPI.
Printed Picture Size: 4" W x 12.625" H (100 x 320 mm).
Effective Print Pixels: Maximum 1280 x 4096 dots.
Picture Memory: 8 MB.
Interface Port: Parallel (IEEE 1284) / USB (Version 1.1).
Printing Time:
Approximately 3.9 seconds (1280 x 960 dots).
Approximately 5.1 seconds (1280 x 1280 dots).
Power Requirements: 100 V, 120 V, 220 to 240 V, 50/60 Hz (worldwide).
Power Consumption: Approximately 120 W (20 W in stand-by mode).



Dims 154mm (W) x 105mm (H) x 260mm(D)

Serial# 50728

PDF Manual
