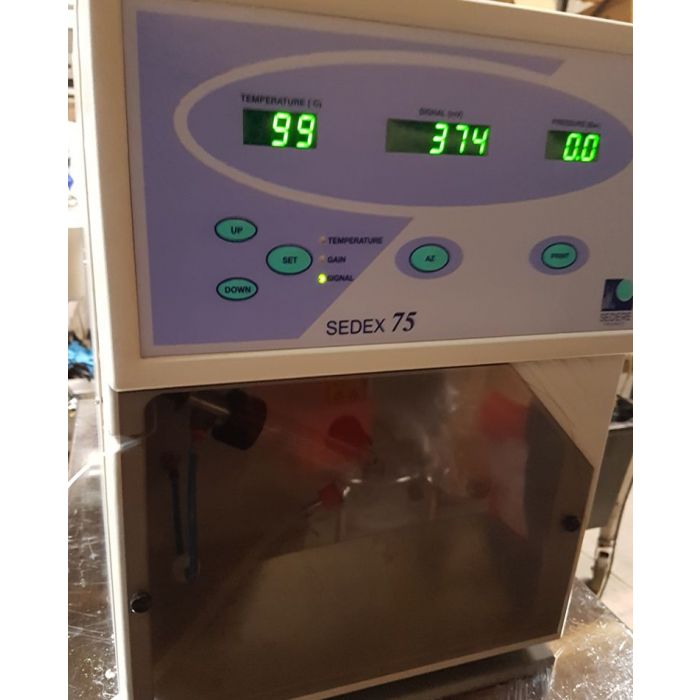

Sedere Sedex 75 High Sensitivity LT-ELS Detector

Sedere Sedex 75 High Sensitivity LT-ELS Detector. (Sedex ELSD)
Evaporative Light Scattering Detector.

The Sedex 75 is designed to be very easy to use. The operator needs to set only three controls, the gain, the zero and the evaporation temperature. Furthermore, the integrated system design, on all SEDEX detectors, allows them to be used with either high aqueous or high organic solvent mobile phases, without the need for additional low temperature accessories.

The SEDEX Model 75 provides the option of 4 new nebulizers and a redesigned evaporation tube. These changes allow you to use a lower temperature to evaporate the mobile phase, this provides a more uniform droplet size, maximizing the sensitivity and repeatability.

Sedex ELS detectors offer the best and easiest way to detect poor UV Absorbers.

Specifications:

    Light Source: Polychromatic Tungsten Halogen Lamp
    Detector: High Sensitivity Photomultiplier
    Temperature Range: Ambient to 100 °C
    Gas Flow: Less than 3.5 L/min
    Eluent Flowrate: from 5 µL/min to 5 mL/min (4 Nebulizers Option)
    Instrument: Microprocessor
    Signal Drift: Inferior to 1 mV/Hour
    Outputs: 1 Analogical 0 – 1 Volt; 1 Analogical 0 – 10 mVolt; 1 digital RS232 communication port
    Inputs (Contact Closures): Remote Auto Zero

Serial: 0270722E
Power:  240V 50/60 Hz
Dimensions: D36 x W52 x H49 cm
