Samsung LFD Network Set Back Box SBB

Samsung LFD Network Set Back Box SBB

The PC expansion module for Samsung LED LFDS

New in the Box - Unused

Manufactured 2011

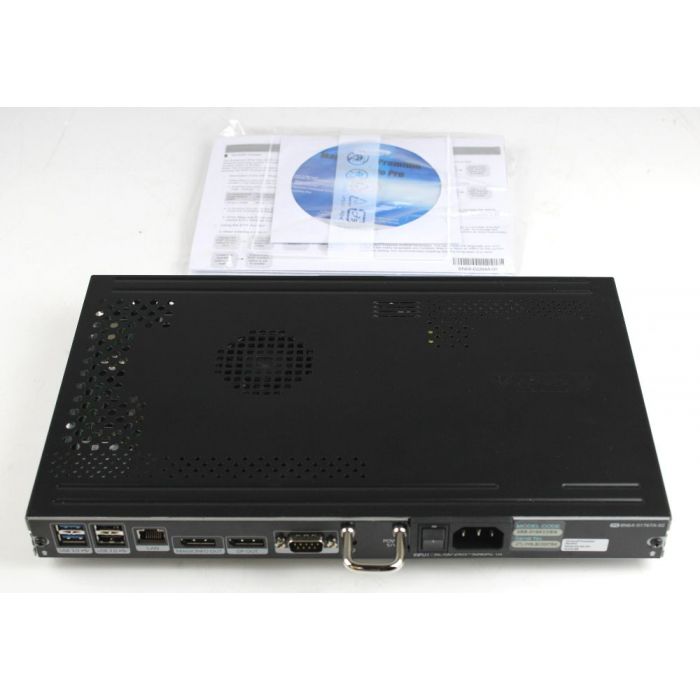

Samsung SBB-D16AX2 Set Back Box - A4 - 3310MX Dual Cre (2.10GHz, 2.5GHz Turbo), 2GB RAM, !6GB SSD, 2 x USB 2.0, 2 x USB 3.0, RJ45, Windows Embedded Standard


SBB-A (Dual Core, 16GB SSD)

SBB-D16AX2/EN

Set Back Box

The PC expansion module for Samsung LED LFDS - Samsung set back box (SBB-A)

The new Samsung set back box models and SBB D16AX2 Q32AX4 are currently compatible with the new 2011 Series LED LFD. These include the ME/DE/UE- and the UD series. Both versions are due to the particularly slim design perfect fit to the new models. The version is D16AX2 with AMD 2.1 GHz dual-core APU (Accelerated Processing Unit) equipped, 2GB of DDR-3 RAM, integrated ATI Radeon graphics HD6480G unit and a 16GB SSD stand aside. Q32AX4 is at the more powerful model, the Intel 1.8 GHz Quad Core 4GB of DDR-3 APU RAM, a Radeon graphics HD6620G unit and a 32GB SSD adds. The operating system comes in two version of Microsoft Windows Embedded Standard is used. Thus both boxes offer an ideal complement for the new LED LFDS and also expand their range of applications especially in the digital signage sector. By Samsung with supplied content management software MagicInfo (Pro / i) can be as different content over the network / Internet * sent to the display, the operating status and remote read accesses are performed. (*versionsabhngig) (* Depending on version)

Powerful Platform:

The AMD A-Series APUs (Accelerated Processing Unit) with two cores provide 2,1 GHz (Type A4), or four cores of 1.8 GHz (type A8) with frequency in conjunction with the integrated Radeon HD graphics unit DirectX 11 support for the provision of necessary services for the reproduction of different content. Over the existing turbo function of APU when needed even more power can be retrieved. Furthermore, the system is supported by 2GB or 4GB DDR-3 memory. The necessary space to accommodate a large 16GB/32GB SSD.

Microsoft Windows Embedded Standard

The operating system Windows Embedded Standard is based on the sophisticated Windows XP operating system and provides similar functionality. This ensures that a wide range of applications and drivers will be optimally supported.

 Samsung content management software included

DieThe Samsung Magic Info is content management software on the system (client) preinstalled. For the first time, you can choose between the LAN-based Magic Info Pro version or the Web (WAN) based MagicInfo-i version. Magic Info Pro is recommended for smaller, local environments to max. 20 displays, whereas MagicInfo-i provides for significantly larger and more professional applications and deployment scenarios.

Easy installation

Set the back box is simply bolted to the existing bore holes of the LED LFD series ME / DE / UE and connected via DisplayPort cable. Be removed when used in combination with the UD-series, the top cover of the box, and then the box in the existing shaft plug is inserted and wired.

Specifications:

Product Information         Product Name     SBB-A (Dual Core, 16GB SSD)
Model                              SBB-D16AX2/EN
Retail price                      759.00
Signal                              Signal Input     analog, digital
Signal connections          2x (1x MagicInfo out)
MagicInfo client               Operating system     Windows Embedded Standard
APU                                 AMD A4-3310MX (Dual Core), 2.1GHz (max. 2.5 GHz in Turbo mode), 2MB L2 cache
RAM                                 2048 MB DDR3-1333 SO-DIMM
GPU                               AMD Radeon HD6480G (444Mhz GPU clock)
SSD                                (Solid State Drive)     16 GB
LAN                                RTL8111DP Realtek Gigabit
USB 2.0                          2 ports
USB 3.0                          2 ports
Energy characteristics     Power Supply     internal
Power Consumption (Max)     70 W
General Specifications     Color     Black
Mechanical on / off switch     yes
Operating conditions              Ambient temperature     10 ~ 40 C
Humidity                               10% ~ 80% (no condensation)
Delivery                                 Power cord     yes
 DisplayPort Cable                 yes
Holder                                    yes
Multiscreen software (CD)     yes
Manual (CD)                           yes
Dimensions and weight          Dimensions (W x H x D)     310 x 32 x 219 mm
Weight without packaging     1.8 kg
Weight with packaging           2.5 kg
