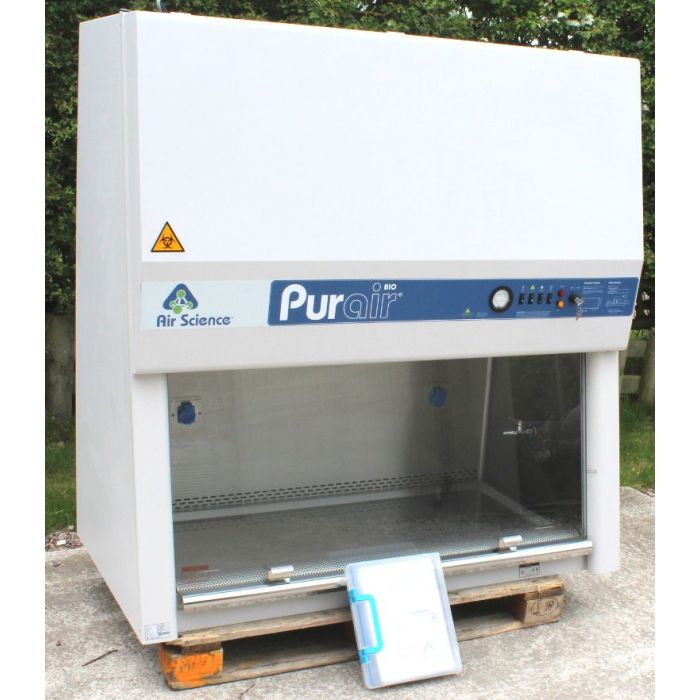

Purair BIO Biosafety Cabinet PB-48-EN

Purair BIO Biosafety Cabinet PB-48-EN



The Purair® BIO BSC is designed to protect individuals, the environment, and products from a variety of biological particulates, serving as the primary barrier in life science research and experimentation.



As a Class II Type A2 biosafety cabinet, the Purair BIO minimizes and contains Biosafety Level 1-3 agents, maintaining negative pressure inside the cabinet during operation to prevent contaminants from escaping the work area. HEPA filtration scours 70% of the incoming room air to protect the products, while the remaining 30% of the exhausted air is filtered by a second HEPA filter. Purair BIO cabinets provide ample workspace with environmentally sound operation and low energy consumption.



The Purair BIO saves money and decreases the load required on your facility HVAC system. Industry-leading innovations and technology make the Purair BIO:




•Easy to Install. The biosafety cabinet is self-contained and does not require venting to the outside. Units are portable and may be moved from one location to the next with minimal downtime and without filter changes. Set-up, operation and filter maintenance are straightforward.
•Energy Efficient. Because filtered air is returned to the room no demands are required of the facility HVAC capacity for make-up air.
•Cost Effective. Facility ductwork, HVAC and construction costs are eliminated.
•Safe to Use. Cabinet airflow and face velocity protect users from incidental exposure to particulates.



HEPA Filtration



HEPA filtration protects the operator from particulates and the process/samples from contamination by maintaining cleanliness within the work zone



The Purair BIO uses AstroCel® HEPA filters to provide a range of high performance protection. These self-contained filters are designed to physically capture particles larger than 0.3 microns with >99.995% typical efficiency.



 The AstroCel II Fluid Seal filters feature an integral groove filled with gel at the air inlet side, ensuring a perfect seal to the housing system. The aluminum frame guards against swelling typical of wooden framed filters. The filters do not contain aluminum separators to provide unobstructed airflow and superior filtration.



 A patented HEPA filtration lock maintains filter efficiency, minimizes the chance of leakage and prolongs filter life. The filters can also be changed from the front side of the cabinet quickly and easily.



A. User Interface: Ergonomics, safety and aesthetics all come together with the 10º pitch of the face.
B. Removable Tray: Raised one-piece work surface lifts and removes for easy surface decontamination.
C. Durable Interior: The Purair BIO utilizes a heavy-gauge, one-piece liner with coved corners for easy cleaning and durability.
D. Standard Control System: Reliable rocker switches and easy-to-read gauge for safety and durability. EN-only models are equipped with membrane-style switches.
E. Double-wall Plenum Design: Double-wall design creates a unique plenum which surrounds contaminated areas with negative pressure, preventing the possibility of contamination from leaks in filter seal, gasket or cabinet structure.
F. Ergonomic Fit: The angled front, narrow-front grille, raised armrest and frameless sash create an ergonomic work environment. Unique front grille designed to provide the maximum product and personnel protection.
G. Clean: Single-piece stainless-steel work tray and front grille, lower drain pan with angled side, and single-piece work zone liner eliminate joints for superior cleanability.
H. Safe: HEPA ?lters (Class H14) tested to a typical efficiency of >99.99% for 0.3 micron particles.
I. Robust Cabinet Construction: Key components, including fluorescent lamps, motor capacitor, electrical harness, electronic ballast, and switch control are mounted outside the airstream and away from contaminated air to permit service without decontamination.
J. Surround Air Intake Grill: All contaminated air is enclosed in the work area. No safety dead zone.
K. This item can be supplied with the Mounting Stand: Stand height of 26" (660 mm) creates work surface height of 29.4" (746 mm) for seated position.



Dims External (W x D x H) 1430 x 887 x 1630 mm



SERIAL# AHA1403025
DOM May 2014
