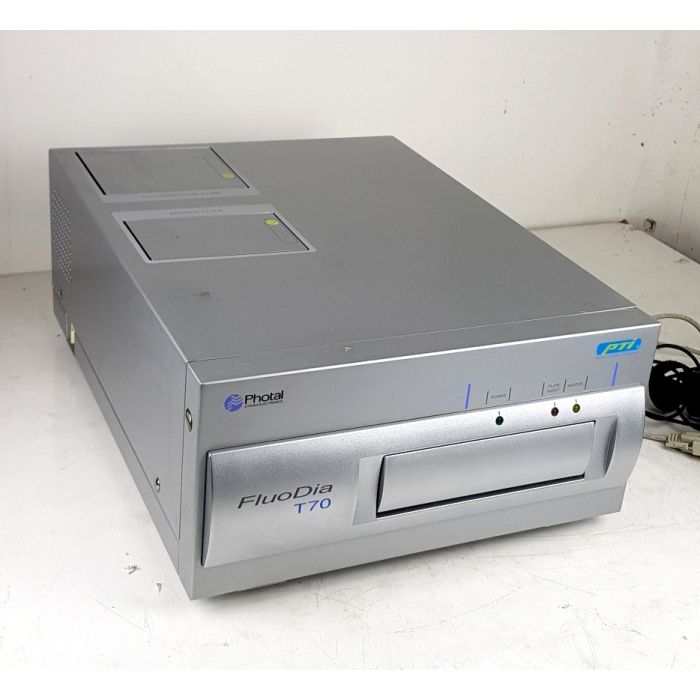

Photal FluoDia T70 fluorescence microplate reader

Photal FluoDia T70 high temperature fluorescence microplate reader
The T70 is now supported by Horiba. Horiba Software included for Windows XP

FluoDia T70 is a filter-based high temperature fluorescence microplate reader. It is an excellent platereader for people who want to measure fluorescence intensity.

The Heater plate adapters are not included, therefore is is listed as a room temperature Fluorescence Reader

Key Features:

FluoDia T70 is a filter-based, high temperature microplate reader for measuring fluorescence intensity of samples in 6 to 384-well microplates. The most outstanding features of FluoDia T70 are: reproducibility, sensitivity, temperature control, and dynamic range.

Highest Reproducibility: This is the ability to give repeatedly the same results, i.e. no inaccuracy due to equipment. The highest reproducibility of FluoDia T70 makes it possible to monitor minor changes in a signal that would otherwise be considered as the standard deviation of the machine.
Highest Sensitivity: FluoDia T70 is one of the most sensitive fluorescence plate readers on the market. It can read as low as 2.4 fmol/well of sodium fluorescein.
Temperature Control: The exclusive heating stage allows Fluodia T70 to control temperature up to 75� C with accuracy of �0.3�C and homogeneity of �0.3�C across the plate. This allows it to be used for a wide range of applications, such as Protein Thermal Shift Assay, RNA Invader� assay, ThermoFluor� binding assay, denature of a wide range of proteins, in vitro fibrillogenesis, et al.
Widest Dynamic Range: This defines the range of measurements over which the machine is capable of measuring. FluoDia T70 can detect signals within 7 orders of magnitude, which is the widest dynamic range of all plate readers on the market. This allows it to measure both very strong and very weak samples in the same plate.

Filters Fitted:

                    Number     Serial 300050
Excitation Filter  1       486 DF 10 836 0246
                       2        560 DF 10 840 0246
                       3        BLANK

                       4.   580 DF 20 39941

Emission Filter  1        530 DF 10 838 0246
                      2         620 DF 20 41802
                      3         530 DF 10 8380246
                      4         BLANK

FluoDia T70 has many other important features:
Dual wavelength measurement capability allows it to be used for applications such as FRET, intracellular ion or pH et al.
Multiple points/well measurement feature allows users to choose which points in a given well signals should be collected when using 6, 12, 24 and 48 well plates.
Linear or two dimension butterfly sample mixing, with user defined velocity and duration guarantees proper sample mixing before and during mulit-cycle measurements.
Quantitative measurements
Software complies with FDA21 CFR part11, which is useful for biotech and pharmaceutical companies
Barcode Reading Capability

Light source Quartz Halogen (I2) lamp,: 2000 Hours (320�830 nm)
Light guide Quartz fiber (1.4 mm) & condenser lens
Optics Top-to-top
Wavelength Selection Interference filters
Filter ports 4 each for exc/emi. Automatic software controlled
Detector Side-on type PMT (185�830 nm)
Measurement method Photon counting
Integration time 10 msec�10sec
Number of averages 1�100 times/well
Stage X � Y stage with automatic sensing of the well-center
Stage Calibration Automatic calibration using the calibration plate
Sample mixing Mixing form, time, velocity all software controlled
Temperature control Exclusive heating stage
Heating stage Flat heater plate, 96-well or 384-well heater plate
Dual P.I.D. control. Built-in (123�C) thermal fuse
Plate type 6-384 well plate, strip tubes (when using 96-well heating stage). Transparent, black, white
Bar-code reader: Keyboard Wedge Output (up to 16 characters)
PC requirements: Windows OS: Windows NT 4.0, 2000 , XP, Windows 7
External communication RS-232C and RS232 to USB converter

Power supply 120 V/230 V/100 V, 50/60 Hz
Dimensions (W x D x L) 380 x 505 x 200 mm
Weight Approx. 20 kg
