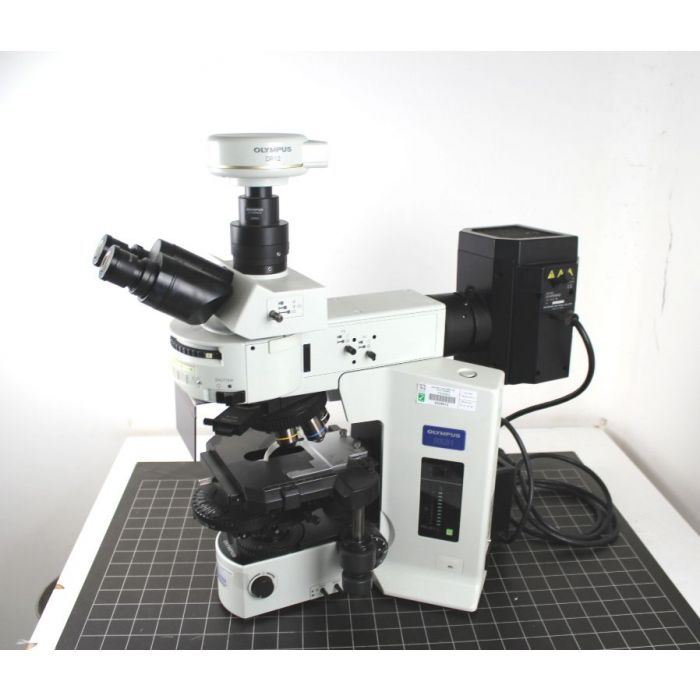

Olympus BX51 TF Microscope.
Olympus BX51 Consultant or research grade microscope with the following features
Immunofluorescence reflected light. HBO 100w with excitation filters fitted. we have different examples of filter cubes please contact us with your requirements.
Polariser filters both analyser and polariser.
The substage condenser has filters for Phase contract as well as Bright Field and dark Field. A flip condenser is also fitted.
Light filters for transmitted light include Day light filter and ND neutral density filters
Tri-nocular head for the fitting of a camera.
The instrument has an olympus camera fitted as below. An alternate camera can be supplied and fitted to the instrument with a USB connection and web based image analysis software supplied. Again please email us with your requirements and we would be happy to quote a system for you.
A fantastic example of a research grade microscope at a huge saving on new.
Comprehensively equipped with following Olympus Part Numbers
U-LH100HG Fluorescence Light Source
The Olympus Mercury light source is a cost-effective and powerful entry-level 100 W fluorescence light source. The broad emission spectrum enables a range of fluorescence imaging experiments to be conducted using all common fluorophores.
Lamp: 100 W Mercury discharge burner
The Olympus Mercury light source is a cost-effective and powerful entry-level 100 W fluorescence light source. The broad emission spectrum enables a range of fluorescence imaging experiments to be conducted using all common fluorophores.
Lamp: 100 W Mercury discharge burner
BX3-RFAS Coded Fluorescence Illuminator
U-UCD8 Universal Condenser with 8 turret positions
The universal condenser simultaneously accepts up to 6 DIC prisms and 2 other optical components at maximum. The condenser numerical aperture of 0.9 or 1.4 (oil) can be selected through interchangeable top elements.
The universal condenser simultaneously accepts up to 6 DIC prisms and 2 other optical components at maximum. The condenser numerical aperture of 0.9 or 1.4 (oil) can be selected through interchangeable top elements.
U-RFL-T Power Supply Unit
Research Grade Objective Lenses with Phase contract on two as follows
Olympus UPlan Fl:
10x /0.30 Ph1
40x /0.75 Ph2
100x /1.30 Oil IRIS with correction collar
10x /0.30 Ph1
40x /0.75 Ph2
100x /1.30 Oil IRIS with correction collar
Olympus Plan
40x /0.65
4x /0.10
40x /0.65
4x /0.10
DP12 Camera,
Imaging Sensor:1/1.8 inch (~0.55”) interlace scan CCD w/3.34 Mpixels (actual 3.24 Mpixel )
Image Display:3.5 inch 200,000 pixel TFT color LCD Monitor
Offering high-resolution 3.34 million pixel images, the easy-to-use Olympus® DP12 offers increased pixel density and incorporates an intuitive photomicrography concept. The compact DP12 is sleekly designed, ergonomic, and is engineered for use as both a stand-alone digital camera or to be interfaced to a PC offering maximum flexibility. The camera is operated from the convenient handset control unit and transfers the images to the PC using high-speed USB technology. Integrating the DP12 digital camera with one of the Olympus MicroSuite imaging software packages will provide a seamless environment where images can be captured, processed and analyzed. For routine imaging applications requiring documentation and image recording, the DP12 is ideal, providing a compact solution for professional digital imaging in microscopy!
Imaging Sensor:1/1.8 inch (~0.55”) interlace scan CCD w/3.34 Mpixels (actual 3.24 Mpixel )
Image Display:3.5 inch 200,000 pixel TFT color LCD Monitor
Offering high-resolution 3.34 million pixel images, the easy-to-use Olympus® DP12 offers increased pixel density and incorporates an intuitive photomicrography concept. The compact DP12 is sleekly designed, ergonomic, and is engineered for use as both a stand-alone digital camera or to be interfaced to a PC offering maximum flexibility. The camera is operated from the convenient handset control unit and transfers the images to the PC using high-speed USB technology. Integrating the DP12 digital camera with one of the Olympus MicroSuite imaging software packages will provide a seamless environment where images can be captured, processed and analyzed. For routine imaging applications requiring documentation and image recording, the DP12 is ideal, providing a compact solution for professional digital imaging in microscopy!
U-CMAD3 C-mount camera adapter
Power: 100V - 240V
Serial No: 1F17086
PDF Manual
| SKU | K164 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
