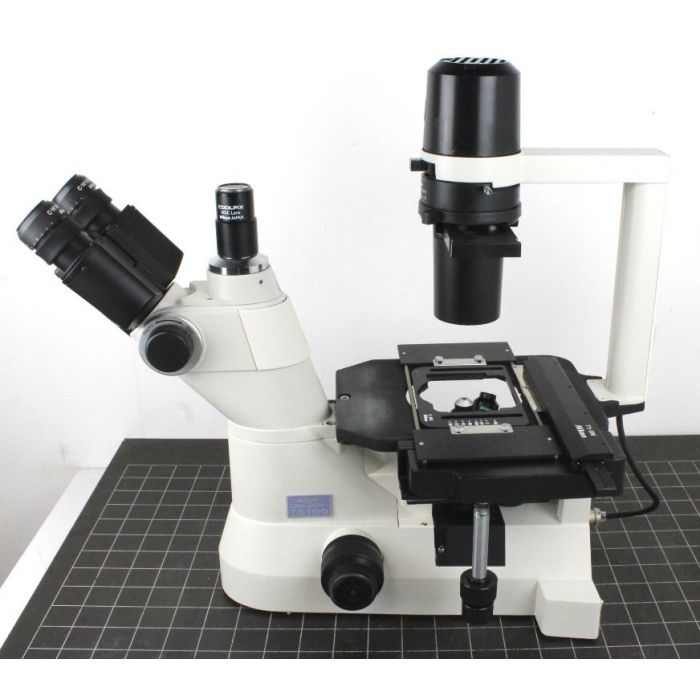

Nikon Eclipse TS100-F I Phase Contrast Inverted Microscope

The Nikon Eclipse TS100 Inverted Microscope comes from a long line of reliable microscopes.  The Halogen bright-field lamp provides enough light for phase contrast and NAMC viewing.   The Eclipse TS100 Inverted Microscope Sidentopf eye piece from Nikon delivers constant brightness throughout the entire field of view.  This microscope is ideal for applications such as tissue culture, plaque measurement and blood typing.

Nikon Eclipse TS 100 highly acclaimed CFI60 optical system is used, providing flat, sharp and clear images, while achieving longer working distances and higher numerical apertures. The Eclipse TS100 is also outfitted for phase contrast applications with a phase ring slider and filter holder.

The TS100-F comes with a photo port and accepts various photomicrographic systems, including a CCTV camera, or a digital still camera.

The quintuple (5-position) backward-facing nosepiece offers plenty of clearance to allow the operator to rotate

it from either side. Because there is ample space around the nosepiece, handling the nosepiece is easy, even for an operator with large or gloved hands.

Eyepiece lens
C-W 10X (F.O.V. 22mm)

Objectives
CFI Achromat ADL10X (N.A. 0.25, W.D. 6.2mm) Ph1
CFI Achromat LWD ADL20XF (N.A. 0.4, W.D. 3.1mm) Ph1

ELWD Condenser with ELWD 0.3 T1 SNCP Non-centerable Phase Slider

T1-SM Attachable Mechanical Stage (Stage movement: 126 x 80 mm) with C-HU Universal Specimen Plate Holder

Coolpix MDC Lens Adapter

Serial# 603810

PDF Manual

228(W) x 517(D) x 480(H) mm,

8.1 kg
