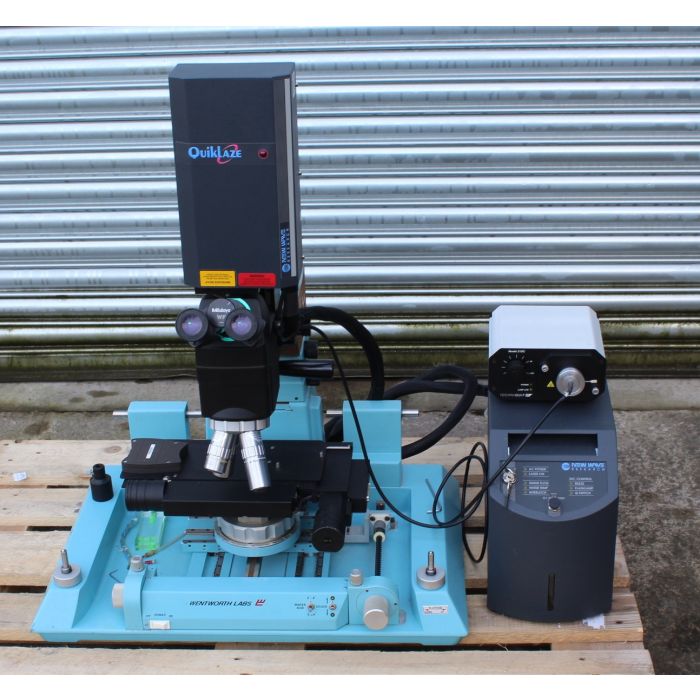

New Wave Research QuikLaze Laser Cutter System, from Wentworth Labs

New Wave Research QuikLaze Laser Cutter System, from Wentworth Labs

Laser cutting system for semiconductors
Pre Owned, Quiklaze Model 1064/532, Year of Manufacture 2007.

Mitutoyo Microscope Head
MPlan Apo 10
MPlan Apo 50
MPlan Apo 100

Prior 2, Motorised Microscope Stage, and joy stick, H116

Techniquip Model 21 DC halogen fiber optic illuminator

QuikLaze Laser Cutter System for Semiconductor Design.

This system is designed for semiconductor design and failure analysis, microelectronics machining and research applications.

The QuikLaze complies with the Center for Devices and Radiological Health (CDRH) Standard 21 CFR 1040.

QUIKLAZE - IMPROVE FAILURE ANALYSIS TO MAXIMIZE YIELD

The QuikLaze laser system is an excellent tool for increased productivity in semiconductor failure analysis, providing a valuable tool for quickly removing passivation materials and cutting circuit lines.

QuikLaze 50ST2 specifically enables quick, easy removal of a variety of materials. Multiple, user-selectable wavelengths provide the capability to selectively remove specific materials while leaving others unaffected.

The system can vastly improve yield for LCD production by quickly repairing defects and removing shorts.
The QuikLaze laser system features an Advanced Beam Delivery System (ABDS).
The ABDS enables precise cuts on a microscopic level for each of the three wave-length regions (infrared, visible or ultraviolet).
The system also provides precise power control of the wavelength selectable beam without sacrificing the beam characteristics.

Many accessories and Jigs included with this system, please check the Pictures. All cables also included.

PDF User Manual
