Munters MG50 Series Desiccant Dehumidifier

Munters MG50 Series Desiccant Dehumidifier

Industrial / Scientific Dehumidifier



Pre-Owned but Unused. As New

Description
240V~50/60Hz

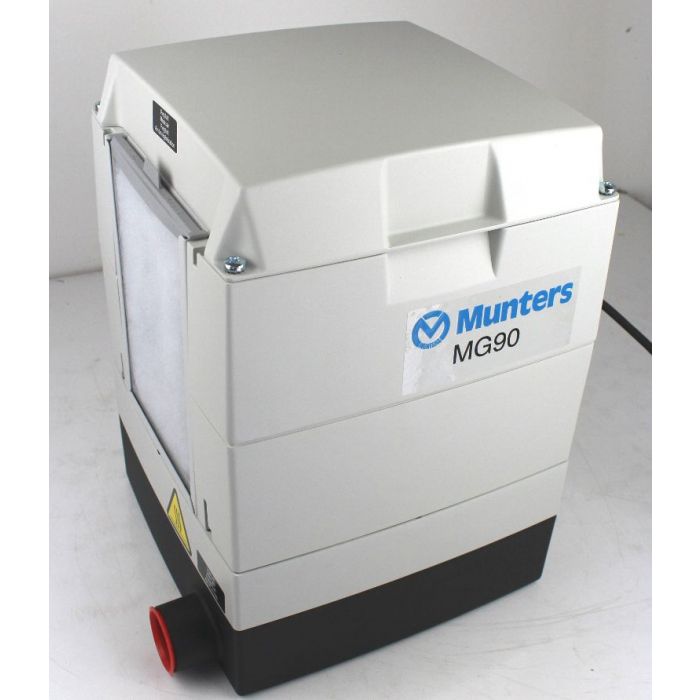

The MG50/MG90 desiccant dehumidifier is designed to efficiently dehumidify air. Its very compact construction incorporates sections held together by four bolts. The fan, desiccant rotor and reactivation heater are secured in fixed positions within their respective sections without utilizing additional attachments. One of the sections contains a distribution chamber with isolated sections that provide a precise balance for dehumidification and reactivation airflows. Its rugged casing is constructed from corrosion resistant die cast aluminium. The electrical control system conforms to EN 60204 (IEC204) standards and the electrical components are assembled in the upper compartment. MG Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.



Technical Specification:



    Process air
    Freeblowing at 50Hz (m³/h) 80
    Freeblowing at 60Hz (m³/h) 85
    Rated airflow (m³/h) 50
    Reduced airflow (m³/h) 100
    Available static pressure 50Hz (Pa) 120
    Reactivation air
    Rated airflow (m³/h) 12
    Available static pressure (Pa) 50



Total Power:



    voltage and current (amps/phase)
    Total power(kW) 0,440
    230V 1-50/60Hz (A) 1,9
    240V 1-50/60Hz (A) 1,8



Miscellaneous Data:



    Operating temperature (ºC) -20/+40
    Max noise level unducted (dBA) 58
    Air filter standard G3
    IEC protective class (unit) IP44
    IEC protective class (electrical panel) IP5
    Width 275 mm     Depth 275 mm     Height 388 mm
    Diam.48 mm
    Weight 10 kg
