MolGen PurePrep TTR

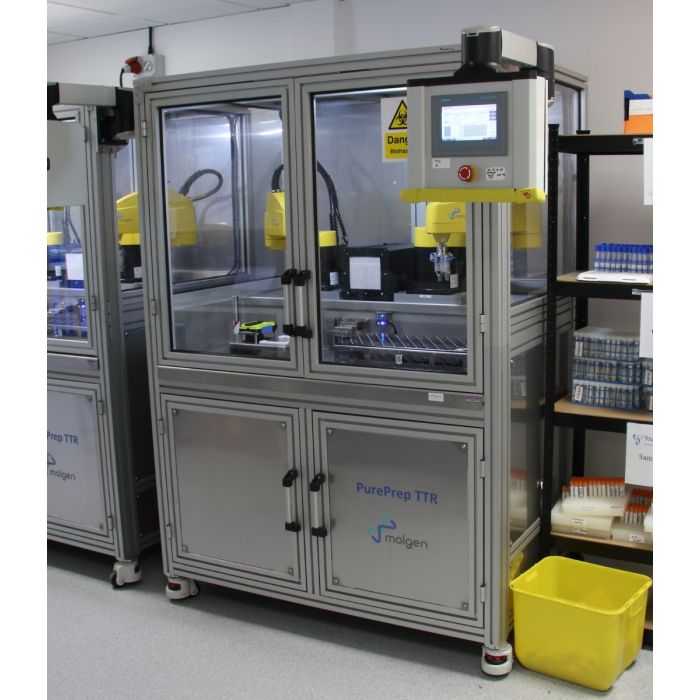

The PurePrep TTR fully automated, professional-grade liquid handling device

Fully automated, PurePrep TTR is a high-quality, professional-grade liquid handling device that transfers liquid at an exceptionally accelerated rate from tubes to Deep Well microtiter plates with exact precision. Removing the need for manual operation and pipetting, it decreases the hands-on time of laboratory technicians and reduces the laboratory’s rate of error. This makes PurePrep TTR the essential tool for the fully automated processing of samples. There are several aspects of this innovative technology that makes this device perfect for a wide range of diagnostic tests and molecular biology techniques.

For large-scale laboratories with high-throughput process, PurePrep TTR comes highly recommended due to its innovative diagnostic workflow. Easy to set up, it is part of a complete workflow, and it is optimised for processing PurePrep TL+ samples. There are many attributes of PurePrep TTR that make it a total and effective molecular diagnostic handling device. Having the capacity to open up and pipet samples from 320 tubes per hour to deep well plate, PurePrep TTR supports an elevated completion process. With its ability to handle the sample size of 50 up to 1000 microlitres, there are sensors at every step that are monitoring each facet of the operation to ensure the results meet the outcome expected by lab technicians. To track and trace the samples throughout the complete workflow, both the tubes and plates are equipped with barcodes that are rapidly read by scanners. With optimised dual-arm design, PurePrep TTR is able to consistently deliver exact liquid transfer to the tubes. In addition to being designed to greatly reduce lab mistakes, this technology also reduces contamination risks within a lab setting as it requires no additional system liquids. And the advanced feature such as a swirl in the pipetting head makes it possible to pipette the sample without having to remove the swab. Furthermore, this modern, innovative system ensures safety and prevents defiling of the sample by decapping and capping tubes. As part of its fully automated process, this device performs pipetting by air displacement and this air displacement is what enables unlimited volume control. With the added liquid level technology, the system is now able to handle tubes with a variation in input volume, increasing the efficacy of the diagnostic workflow.

More than consistency and speed, the PurePrep TTR has been designed to be user-friendly. Through the use of an intuitive touchscreen interface, each run of the device can be resumed after any interruption, such as the opening of a door, an emergency stop, or even, when there’s a failure of power to the machine. By decreasing hands-on time, and increasing lab accuracy, the PurePrep TTR from MolGen is the most innovative way to optimise the efforts of those on the front lines of virus mitigation, genetics research and other biological condition diagnostics to improve the health and well-being of all.

96 wells/ 500 μL

High-throughput process speed of up to 320 tubes per hour;

Pipetting by air displacement;

Fully automated processing;

Sensors monitor every step in the process to ensure safe and accurate processing;

The run can be resumed after any interruption (door open, emergency stop, or power failure).

Optimized dual-arm design with an accurate and consistent and liquid transfer;

Lack of system liquid further prevents potential contamination;

Barcode scanning ensures full track-and-trace of samples and plate positions throughout the workflow;

Can process tubes with swabs;

Air displacement enables unlimited volume control;
