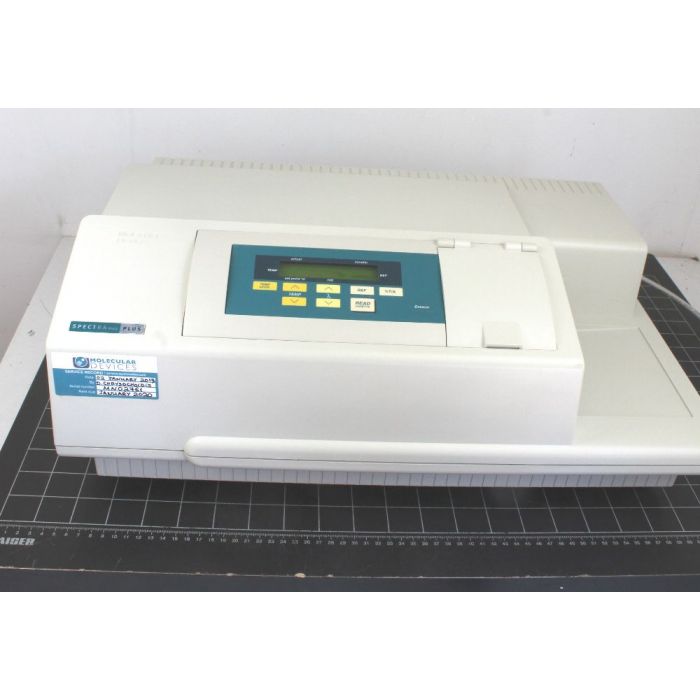

Molecular Devices SpectraMax Plus 384 UV/VIS Absorbance Microplate Reader

Molecular Devices SpectraMax Plus 384 UV/VIS Absorbance Microplate Reader
With Dell Optiflex 780, and Softmax Pro Software
PDF Manual
Serial No: MN02761

This UV-visible absorbance microplate reader provides ultrafast, full spectral range detection for cuvettes, 96-well, and 384-well microplates, with the only temperature-independent method for pathlength correction.

Temperature control
Shaking capabilities
Multichannel optical design
Eliminates error

Temperature control and shaking come standard.

The patented multichannel optical design of the SpectraMax® Plus384 Absorbance Microplate Reader mimics a dual beam spectrophotometer, measuring each sample in the plate directly, eliminating measurement error due to variations in light output between optical fibers on other instruments for more reliable data reporting. The nine-channel system delivers both high precision and speed when reading cuvettes, 96-well, and 384-well microplates for endpoint measurements, kinetic assays, and spectral scans. The optical system of SpectraMax Plus384 Microplate Reader is built around a monochromator, which allows for selection of up to six wavelengths at a time for absorbance detection in the UV-visible wavelength range (190 nm - 1000 nm). Narrow 2nm bandwidths deliver increased measurement accuracy and linearity over the widest range of assays, including ELISAs in the visible range or DNA quantitation in the UV range.

The SpectraMax® Plus can read as low as 2µL with the µMax Low Volume Plate. The SpectraMax® also uses patented PathCheck® Pathlength Measurement Technology: the only temperature independent pathlength correction for microplates.

Serial No: MN02761

Power 100V - 240V 50/60Hz
