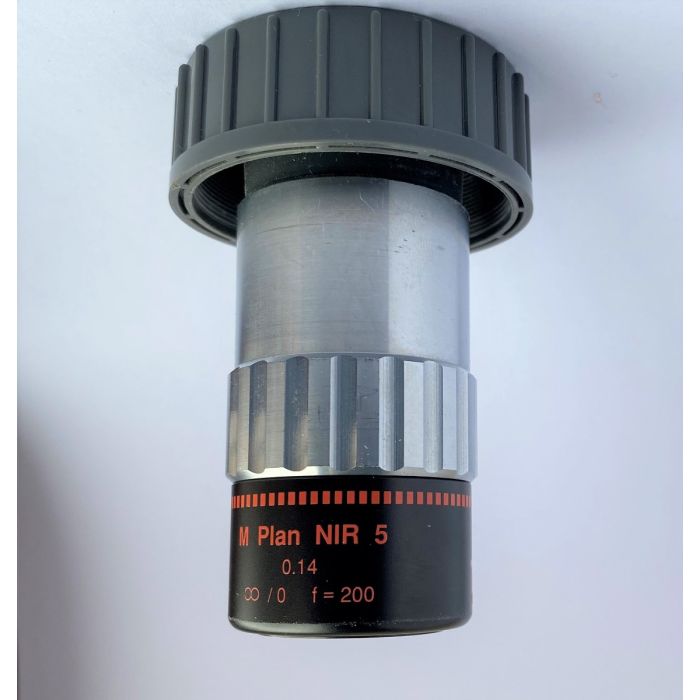

Mitutoyo M Plan NIR 5X Infinity Corrected Objective

Mitutoyo M Plan NIR 5X Infinity Corrected Objective

Magnification:5X
Numerical Aperture NA:0.14
Compatible Tube Lens Focal Length (mm):Focal Length: 200mm
Compatible Cover Glass Thickness (mm):N/A
Depth of Field (μm):14.00
Design Wavelength DWL (nm):532, 1064
Horizontal Field of View, 1/2" Sensor:1.28mm
Field of View, 18 Diameter Field Eyepiece (mm):3.6
Horizontal Field of View, 2/3" Sensor:1.80mm
Field of View, 24 Diameter Field Eyepiece (mm):4.8
Focal Length FL (mm):40.00
Length excluding Threads (mm):57.5
Manufacturer:Mitutoyo
Maximum Sensor Format:2/3"
Maximum Diameter (mm):32
Mounting Threads:M26 x 36 TPI
Note:Example Application: cutting and trimming of semiconductor wafer and circuits
Parfocal Length (mm):95
Resolving Power (μm):2.0
Style:Infinity Corrected
Type:Microscope Objective
Weight (g):220.00
Working Distance (mm):37.5
Wavelength Range (nm):480 - 1800
Immersion Liquid:N/A
Operating Temperature (°C):-5 to +45
