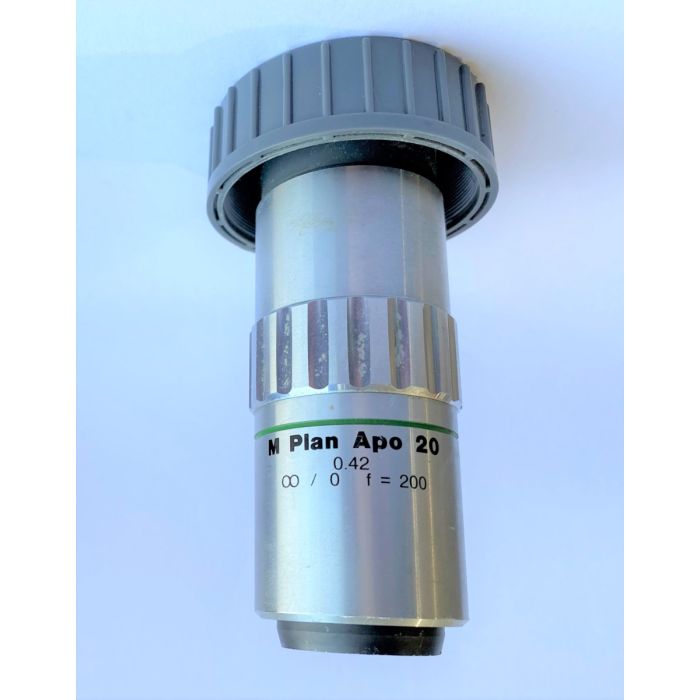

Mitutoyo M Plan Apo 20X Infinity Corrected Long WD Objective

Mitutoyo M Plan Apo 20X Infinity Corrected Long WD Objective

Infinity corrected, metallurgical brightfield plan apochromat 20x objective long working distance lens. Lens features include:
Long Working Distances
Infinity Corrected
Bright Field Inspection
High Quality Plan Apochromat Design
Flat Image Surface over Entire Field of View

Magnification:20X
Numerical Aperture NA:0.42
Compatible Tube Lens Focal Length (mm):Focal Length: 200mm
Compatible Cover Glass Thickness (mm):N/A
Depth of Field (μm):1.60
Exit Pupil Diameter (mm):8.40
Horizontal Field of View, 1/2" Sensor:0.32mm
Field of View, 18 Diameter Field Eyepiece (mm):0.9
Horizontal Field of View, 2/3" Sensor:0.44mm
Field of View, 24 Diameter Field Eyepiece (mm):1.2
Focal Length FL (mm):10.00
Length excluding Threads (mm):75.0
Manufacturer:Mitutoyo
Maximum Sensor Format:2/3"
Maximum Diameter (mm):32
Model Number:378-804-2
Mounting Threads:M26 x 36 TPI
Parfocal Length (mm):95
Resolving Power (μm):0.7
Style:Infinity Corrected
Type:Microscope Objective
Weight (g):270.00
Working Distance (mm):20.0
Wavelength Range (nm):435 - 655
Immersion Liquid:N/A
Operating Temperature (°C):+5 to +40
