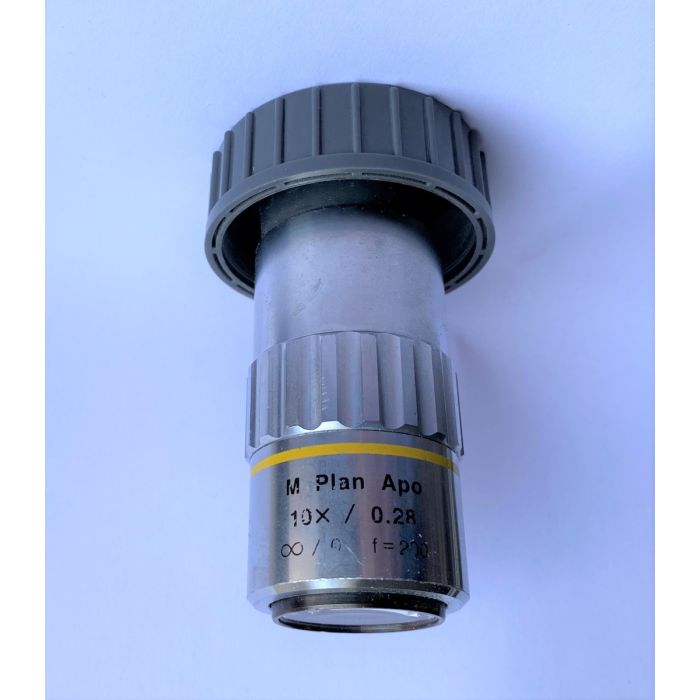

Mitutoyo M Plan Apo 10X Infinity Corrected Long WD Objective

Sold
Wanted
SKU
R033

Mitutoyo M Plan Apo 10X Infinity Corrected Long WD Objective

Magnification:10X
Numerical Aperture NA:0.28
Compatible Tube Lens Focal Length (mm):Focal Length: 200mm
Compatible Cover Glass Thickness (mm):N/A
Depth of Field (μm):3.50
Exit Pupil Diameter (mm):11.20
Horizontal Field of View, 1/2" Sensor:0.64mm
Field of View, 18 Diameter Field Eyepiece (mm):1.8
Horizontal Field of View, 2/3" Sensor:0.88mm
Field of View, 24 Diameter Field Eyepiece (mm):2.4
Focal Length FL (mm):20.00
Length excluding Threads (mm):61.0
Manufacturer:Mitutoyo
Maximum Sensor Format:2/3"
Maximum Diameter (mm):30
Mounting Threads:M26 x 36 TPI
Parfocal Length (mm):95
Resolving Power (μm):1.0
Style:Infinity Corrected
Type:Microscope Objective
Weight (g):240.00
Working Distance (mm):34.0
Wavelength Range (nm):435 - 655
Immersion Liquid:N/A
Operating Temperature (°C):+5 to +40

More Information
SKU R033
Availability Out of Stock
Condition Used
