Minolta CR-410 Chroma Meter, and Data Processor DP400
Portable Colorimeter

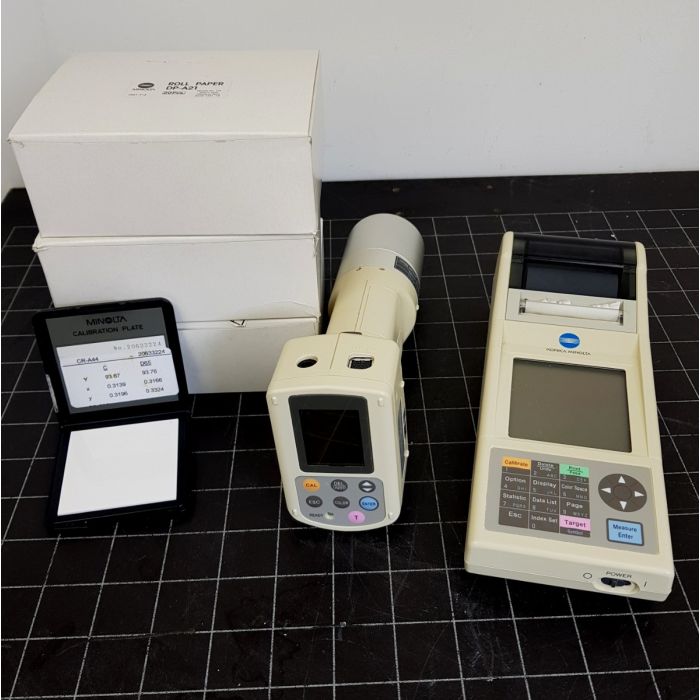

Including power supply, Calibration Plate and Spare Printer rolls
The CR-400, with its 8 mm measuring area is suitable for measuring reflected colour and colour difference in a wide range of industrial fields. It is able to meet the needs of various applications, from all sorts of ingredients, foods, raw materials and finished products to pharmaceuticals and dermatological applications.
If samples are structured or uneven in surface, such as granulates, fabrics, wood, stones, bricks, then the CR-410 is the right choice. Its unique very large aperture of 50 mm is perfectly suited for such samples and thus avoids averaging of several measurements.
Minolta CR-410 handheld Portable Chroma Meter
The CR-400 Chroma Meter is a handheld, portable measurement instrument designed to evaluate the color of objects, particularly with smoother surface conditions or minimal color variation. Through standard or customized evaluation formulas, this high accuracy, reliable colorimeter helps users control the color quality, consistency, and appearance of their samples in a more efficient, streamlined process internally and throughout the supply chain.
It accurately identifies color characteristics in objects, determines color differences between objects, and provides pass/fail assessments to immediately determine if the sample meets the defined standard. This makes the CR-400 ideal for color inspections of food, building material, plastic, and dermatological applications within quality control, quality assurance, and R&D fields.
The CR-400 Chroma Meter comes with the optional data processor to print results on-site
| Model | CR-400 | CR-410 | ||
| Illumination / Viewing system | d:0° (diffuse illumination/0° viewing angle; specular component included) | Wide-area illumination/0° viewing angle; specular component included) | ||
| (compliant with JIS Z 8722; including regular reflectance) | ||||
| Detector | Silicon photocells (6) | |||
| Display range | Y: 0.01% to 160.00% (reflectance) | |||
| Light source | Pulsed xenon lamp | |||
| Measurement time | 1 sec. | |||
| Minimum measurement interval | 3 sec. | |||
| Battery performance | Approx. 800 measurements (when using batteries under Konica Minolta's testing conditions) | |||
| Measurement/ illumination area | Ø 8 mm / Ø 11 mm | Ø 50 mm / Ø 53 mm | ||
| Repeatability | Within ΔE*ab 0.07 standard deviation (when the white calibration plate is measured 30 times at intervals of 10 seconds) | |||
| Inter-instrument agreement | ΔE*ab: Within 0.6 | ΔE*ab: Within 0.8 | ||
| Average of 12 BCRA Series II colours | Average of 12 BCRA Series II colours | |||
| Observer condition | CIE: 2° Standard Observer | |||
| Illuminant condition | CIE: C, D65 | |||
| Tolerance judgment* | Colour difference tolerance (box tolerance and elliptical tolerance) | |||
| Colour spaces / colourimetric data | XYZ, Yxy, L*a*b*, Hunter Lab, L*C*h, Munsell (Illuminant C only), CMC (l:c), CIE1994, Lab99, LCh99, CIE2000, CIE WI/Tw (Illuminant D65 only), WI ASTM E313 (Illuminant C only), YI ASTM D1925 (Illuminant C only), YI ASTM E313 (Illuminant C only), User index (Up to 6 can be registered from computer) | |||
| Languages* (Display) | LCD: English (default), German, French, Italian, Spanish, Japanese | |||
| Storable data sets | 1,000 (Measuring head and data processor save different data) | |||
| Colour-difference target colours | 100 | |||
| Calibration channels* | 20 channels (ch00: White calibration; ch01 to ch19: User calibration) | |||
| Display* | Chroma values; color difference values; PASS/WARN/FAIL display | |||
| Interface / Baud rate* | RS-232 compliant (for data processor/PC) | |||
| * Baud rate: 4,800, 9,600, 19,200 (bps); Set at 9600 when shipped from factory | ||||
| Power source | Four AAA size alkaline or Ni-MH batteries | |||
| AC Adapter AC-A305 AC100 - 240 V 50/60Hz | ||||
| Dimensions (W x H x D) | 102 × 244 × 63 mm | |||
| Weight | Approximately 550 g | Approximately 570 g | ||
| (including 4 AAA size batteries and not including RS-232C cable) | (including 4 AAA size batteries and not including RS-232C cable) | |||
| Operating temperature/ humidity range | 0 - 40°C, relative humidity 85% or less with no condensation | |||
| Storage temperature/ humidity range | -20 - 40°C, relative humidity 85% or less with no condensation | |||
| Other | LCD backlight ON/OFF function (When on, backlight stays ON for 30 seconds after last key or measurement operation) | |||
| Standard accessories | White Calibration Plate CR-A43; | White Calibration Plate CR-A44; | ||
| Optional accessories from Minolta | Hard Case CR-A103; RS-232C Cable CR-A102 (for PC); Granular Materials Attachment CR-A50; CR-400 Utility Software CR-S4w; Color Data Software SpectraMagic NX CM-S100w ; Glass Light-Projection Tube CR-A33a/f; Light-Projection Tube CR-A33c/d; Pivoting Base CR-A12 | Hard Case CR-A103; RS-232C Cable CR-A102 (for PC); Granular Materials Attachment CR-A50; CR-400 Utility Software CR-S4w; Color Data Software SpectraMagicNX CM-S100w ; Glass Light-Projection Tube CR-A33e | ||
| The "*" mark indicates functions available only when the Data Processor is connected or when the required settings have been made. | ||||
| Name | Data Processor | |||
| Model | DP-400 | |||
| Display range | Y: 0.01% to 160.00% (reflectance) | |||
| Measurement time | 1 sec. | |||
| Minimum measurement interval | 3 sec. | |||
| Battery performance | Approx. 800 measurements (when using batteries under Konica Minolta's testing conditions) | |||
| Illuminant condition | C, D65 | |||
| Display | Chroma values; color difference values; color difference graphs; PASS/WARN/FAIL display | |||
| Tolerance judgment* | Colour-difference tolerance (box tolerance and elliptical tolerance) Only for display function | |||
| Colour space/ colourimetric data* | XYZ, Yxy, L*a*b*, Hunter Lab, L*C*h, Munsell (Illuminant C only), CMC (l:c), CIE1994, Lab99, LCh99, CIE2000, CIE WI/Tw (Illuminant D65 only), WI ASTM E313 (Illuminant C only), YI ASTM D1925 (Illuminant C only), YI ASTM E313 (Illuminant C only), User index (Up to 6 registered in the measuring head can be used) | |||
| Languages* (Display) | LCD: English (default), German, French, Italian, Spanish, Japanese | |||
| Storable data sets | Max. 2000 pieces of data (divided into 100 pages) | |||
| Deletion and Undoing of selected stored data (one or all data) are possible | ||||
| Colour-difference target colours* | Only for the operating function (100 pieces of data when the measuring head is connected; input of measurement values or numeric) (Independent from page function) | |||
| Calibratiom channels* | Only for the operating function (20 channels when the measuring head is connected) | |||
| (Channel 00: White calibration; Channels 01 through 19: User calibration) | ||||
| Page function | 100 pages | |||
| Display | Dot-matrix LCD with backlight (16 characters x 9 lines + 1 line for icon display) Contrast adjustment | |||
| Printer | 384-dot line thermal printer (can also print graphs); Automatic printing for each measurement (can be set not to print) | |||
| Statistical function | Maximum, minimum, average, and standard deviation | |||
| Automatic measurement* | Date and time display: Year, month, day, hour, minute | |||
| Timer: 3 seconds to 99 minutes (Some measurement modes require more than 3 seconds) | ||||
| Interface | RS-232C compliant Baud rate (bps): 19200 fixed (when connected to PC); when measuring head is connected, baud rate is automatically set to that of the measuring head. | |||
| Power source | Four AA-size alkaline or Ni-MH batteries | |||
| AC Adapter AC-A305 AC100 - 240 V 50/60Hz | ||||
| Dimensions (W x H x D) | 102 × 244 × 63 mm | |||
| Weight | Approx. 600 g (not including batteries and paper) | |||
| Operating temperature / humidity range | 0 - 40°C, relative humidity 85% or less with no condensation | |||
| Storage temerature / humidity range | -20 - 40°C, relative humidity 85% or less with no condensation | |||
| Other specifications* | User calibration function (multi-calibration/manual calibration); Measurements for automatic averaging function; Print on/off function; CR-400 measurement data import function; All colour space print on/off function; Data protection on/off function; Backlight on/off function; Buzzer on/off function; Display color limit function; Remote mode (stored data output); Character input function (alphanumeric) | |||
| Optional accessories from Minolta | Shoulder Strap SS-01; Hard Case CR-A103; Roll Paper DP-A22 (5 rolls); RS-232C Cable CR-A102 (for PC); CR-400 Utility Software CR-S4w; Colour Data Software SpectraMagicNX CM-S100w | |||
| The "*" mark indicates functions that can be used only when the measuring head is connected. | ||||
Serial No: B8406423
| SKU | Q078 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
