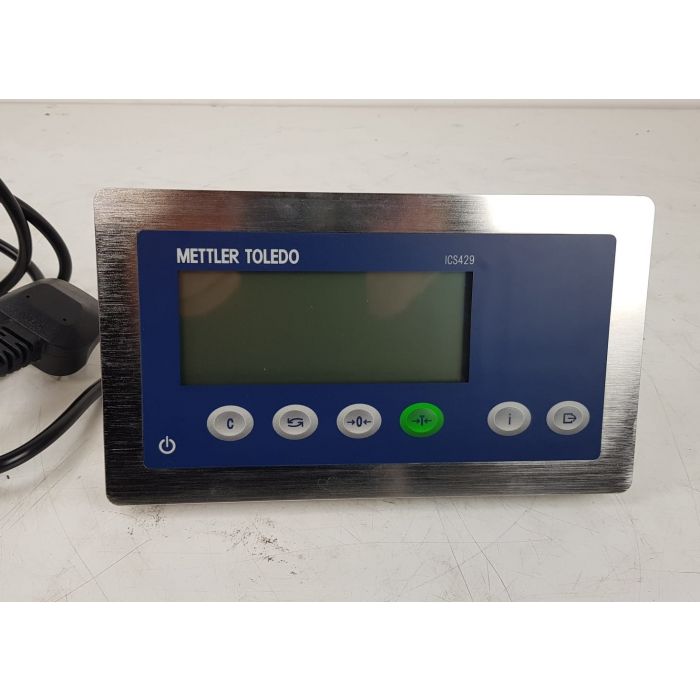

Mettler ICS429d - Weighing Terminal

Mettler ICS429d - Weighing Terminal

Pre owned as new in manufacturers packaging

The ICS429 is the optimal terminal for basic weighing.

Simple to operate with only 7 keys. The large LC Display facilitates clear and comfortable data reading. Due to the three selectable display layouts different parameters are shown.

Combined with the right platform (depends on your individual environment) this solution increases the long term life and the up-time of your scale.

- With IP69k protection, the Scales withstands even the harshest high pressure cleaning procedures without a problem.
- Foil keypad with tactile feedback
- Due to the MinWeigh functionality the operater will be informed if he tries to weigh below a certain accuracy limit
- Display layouts:
1.) Default layout: Weight value + Bargraph
2.) Big font layout: Weight value (25mm) + Bargraph
3.) 3-line info layout: Weight value + Bargraph + Gross/Tare/Net

Specifications - ICS429 - Weighing Terminal
Display LCD
Interfaces RS232 (standard), optional: RS232, RS422/485, Ethernet, USB Device, Digital I/O
Degree of protection IP66, IP68, IP69k
Housings Stainless steel
Applications Basic Weighing
A/D rate (int./ext) 0,264 μV/e
Dimensions 232x132x115 mm / 9.13x5.20x4.53"
Keyboard Without numeric keypad
Signal processing 2-3 mV/V
Resolution (approvable) 1x3,000e OIML
Resolution 300,000d
Suitable platforms / weigh modules All analog and IDNet platforms
Number of attachable platforms 1
Digital Input/Output 04-Apr
Power Supply AC power or internal accu pac

PDF Manual

Serial# 3418207
