Metrohm PGSTAT30 Potentiostat Galvanostat Electrochemical System

Metrohm Autolab PGSTAT30 Potentiostat Galvanostat Electrochemical System

Metrohm Electro chemistry, ( £25,000+ when purchased new in 2013)

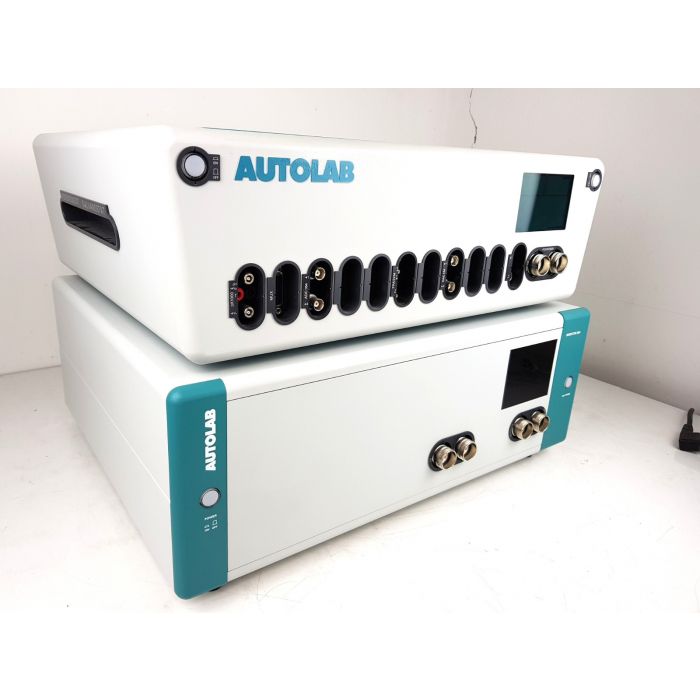

Autolab PG STAT302N with FRA32M module, Serial No AUT85759, (product no AUT302N.FRA2M.v)
Autolab Booster 20A, Serial No MSB7224 (Never used)

1 x glassware electrode cell
1 x px1000 module
1 x LL Unitrode pt1000 (f/2mm) pH and temperature
1 x plug-in Pt Elelctrode SGJ(product no 60331000)
1 x voltage multiplier (product no VOLT.MULT)
1 x Mux module with SNr16 (product no MUX.SCNR16.MAC)
1 x ag/agci dj ei sgc wok (product no 60726100)

This high end, high current potentiostat / galvanostat, with a compliance voltage of 30 V and a bandwidth of 1 MHz, combined with our FRA32M module, is specially designed for electrochemical impedance spectroscopy.

The PGSTAT302N is the succesor of the popular PGSTAT30. The maximum current is 2 A, including current range extended to 20 A with the BOOSTER20A, the current resolution is 30 fA at a current range of 10 nA.

Key features Compatible modules

Electrode connections 2, 3 and 4 EQCM
Potential range +/- 10 V FRA32M
Compliance voltage +/- 30 V BA
Maximum current +/- 2 A (20 A with BOOSTER20A) BOOSTER20A/10A
Current ranges 1 A to 10 nA (100 pA with ECD module) ECD
Potential accuracy +/- 0.2 % SCAN250
Potential resolution 0.3 µV ADC10M
Current accuracy +/- 0.2 % MUX
Current resolution 0.0003 % (of current range) FI20
Input impedance > 1 TOhm pX1000
Potentiostat bandwidth 1 MHz ECN
Computer interface USB
Control software NOVA

Including:
The Booster20A module increases the maximum current of the PGSTAT302N to 20 Ampere. The compliance voltage of the system is 20 V in combination with the Booster20A.

With its fast response time, the Autolab Booster20A has been optimized to perform electrochemical impedance measurements, in combination with the FRA32M module, on fuel cells, batteries and super-capacitors. The booster is able to handle active as well as passive cells. The Booster20A can be used to measure the charge and discharge characteristics of super-capacitors, perform measurements on fuel cells or perform DC or AC measurements on large area electrodes.

Compliance voltage range in volt 20
Maximum bandwidth in Hz 20 k
Maximum current in ampère 20
Maximum power in watt 350
Potential range in volt 10

A potentiostat is an electronic instrument that measures and controls the voltage difference between a working electrode and a reference electrode. It measures the current flow between the working and counter electrodes.
This instrument is fundamental to modern electrochemical studies for investigations of reaction mechanisms related to redox chemistry and other chemical phenomena. Potentiostats control most electroanalytical experiments. They can be used to test for electrochemically active compounds and microbes in solution
