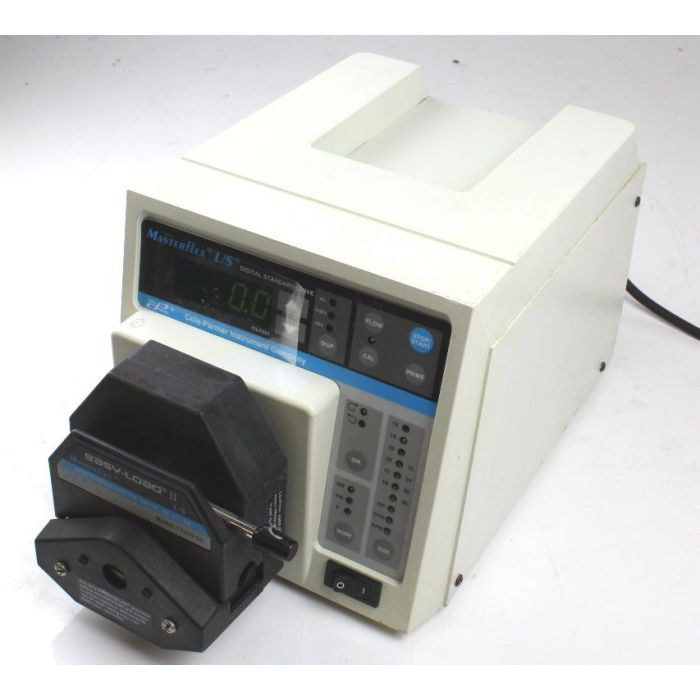

Masterflex L/S 7523-57 standard digital peristaltic pump drive with remote capabilities
Sold
Wanted
SKU
H355
Masterflex L/S 7523-57 standard digital peristaltic pump drive with remote capabilities
Fitted with easy-load 11 77200-50 Head
Pump Specification
Max flow rate (mL/min) 340
Min flow rate (mL/min) 0.1
Control type Digital Variable Speed
Power (Amps) 0.8
Motor (hp) 1/10
Motor (watts) 75
Reversible motor Yes
rpm 1.6-100
IP rating (Drive) IP53
Digital dispensing Yes
Dimensions (Drive 29.2cm (D) x 17.8cm (W) x 17.8 cm (H)) Unit with head, 36cm (D)
Speed control ±0.25% (1 rpm at 600 rpm; 0.1 rpm at 100 rpm)
Max flow rate (mL/min) 340
Min flow rate (mL/min) 0.1
Control type Digital Variable Speed
Power (Amps) 0.8
Motor (hp) 1/10
Motor (watts) 75
Reversible motor Yes
rpm 1.6-100
IP rating (Drive) IP53
Digital dispensing Yes
Dimensions (Drive 29.2cm (D) x 17.8cm (W) x 17.8 cm (H)) Unit with head, 36cm (D)
Speed control ±0.25% (1 rpm at 600 rpm; 0.1 rpm at 100 rpm)
Head specification
- Automatic retention holds tubing securely in place with no manual adjustment—just load the tubing and start the pump
- Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation.
- Improved occlusion bed geometry lengthens tubing life.
- Polyphenylene sulfide (PPS) housing with either stainless steel (SS) or cold-rolled steel (CRS) rotor—choose CRS for economy or SS for greater durability and chemical resistance.
- Model 77201-60 with adjustable occlusion gives you the option of loosening occlusion for longer tubing life or increasing occlusion for higher pressure.
- Each pump head for precision pump tubing accepts tubing sizes L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17, and L/S® 18. Achieve flow rates of 0.06 to 2300 mL/min (1 to 600 rpm).
mL/rev Depends on tubing selected.
Accepted tubing L/S® 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18
Rotor material Cold-rolled steel
Accepted tubing L/S® 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18
Rotor material Cold-rolled steel
PDF Manual
Serial# A0003632
A0003638
| SKU | H355 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
