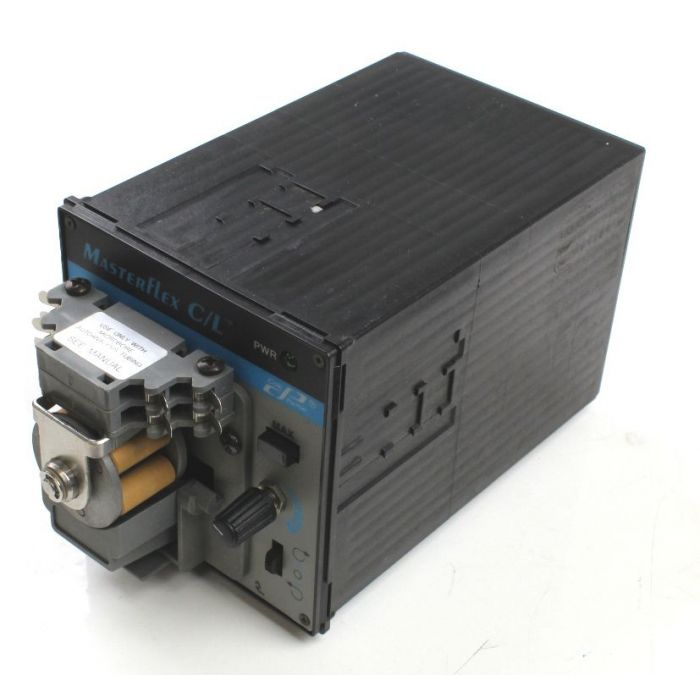

Masterflex C/L Dual-Channel Variable-Speed Peristaltic Tubing Pump, model 77120-50

Masterflex C/L Dual-Channel Variable-Speed Peristaltic Tubing Pump, model 77120-50



Contamination-free two-channel pumping in a compact format—ideal for analyzer, flow cell, and perfusion applications



Flow range: 0.002 to 12.3 mL/min per channel depending on drive rpm and tubing size



One- or two-channel, reversible pumping



Stackable, compact 1/4-DIN housing—mount in your equipment rack or place on your lab bench. (To mount, order brackets 77120-03 separately).



Separate single-turn speed control and cw/off/ccw switch with green LED power indicator—maintain speed setting when you turn pump on/off or reverse direction.



Reversible permanent magnet DC motor; purge fluid before or after pumping; pump fluid in either direction.



Remote control connections on back of pump; start/stop pump with a contact closure.



“Max” button runs pump at maximum rpm—prime or rapidly flush tubing.



Pump head is constructed from polyphenylene sulfide (PPS), stainless steel (SS), and features acetal co-polymer rollers. PPS and SS promote longer life and the six roller construction provides a low-pulsation flow.



Pump head has average fixed occlusion for tubing; no need to adjust occlusion when changing tubing.
C/L pumps are compact (1/4 DIN) and perfect for low-flow OEM use or analyzer applications. These easy-to-use, economical pumps feature reversible pumping, remote control capabilities, and rapid tubing changes. Ideal for consistent fluid delivery in chromatography, spectroscopy, and dispensing applications.
Maximum suction lift of 5 ft (1.5 m); max discharge head of 20 ft (6.1 m); max pressure 15 psi (1.0 bar). Selfpriming pumps withstand minor back pressure.



PDF Manual



Serial# D9506242



http://www.coleparmer.co.uk/Product/Masterflex_C_L_Dual_Channel_Variable_Speed_Tubing_Pump_1_to_6_rpm_12_VDC/WZ-77120-52



Note the 12V power supply is not included. If required this can be supplied by Cole Parmer as per following link



http://www.coleparmer.co.uk/Product/Accessory_Replacement_power_supply_115_230_VAC/WZ-77120-11
