Life Technolgies EVOS FL Colour Imaging System AMF 4300

Life Technolgies EVOS FL Colour Imaging System AMF 4300

Digital Inverted Microscope

The EVOS FL Imaging System (Cat. No. AMF4300) is a fully integrated, digital, inverted imaging system for four-color fluorescence and transmitted-light applications.
It combines precision optics, a 15 inch high-resolution LCD display, and a highly sensitive Sony ICX445 monochrome CCD camera (1280 × 960 pixel resolution, 1.3 Megapixels) to aquire images seamlessly through the intuitive user interface
using a mouse for easy control.

EVOS fluorescence imaging systems utilize a unique, proprietary LED light cubes. The LED light cubes output remarkable intensity over a short light-path that delivers superior fluorophore excitation. Each light cube contains a
precisely matched set of optical components to optimize the position, evenness, and intensity of the light beam. Digitally controlled LED light sources allow adjustment of illumination levels, dramatically improving control over
photobleaching. Hard-coated filters give sharper edges and significantly higher transmission efficiencies than traditional soft-coated filters.

Objectives
Evos Lplan PH2 4x/0.13
Evos Lplan PH2 10x/0.25
Evos Lplan PH2 20x/0.4
Olympus UplanSApo 20x/0.75
Olympus UApo/340 40x/0.6

Pdf manual

Serial# F1314-155G-232

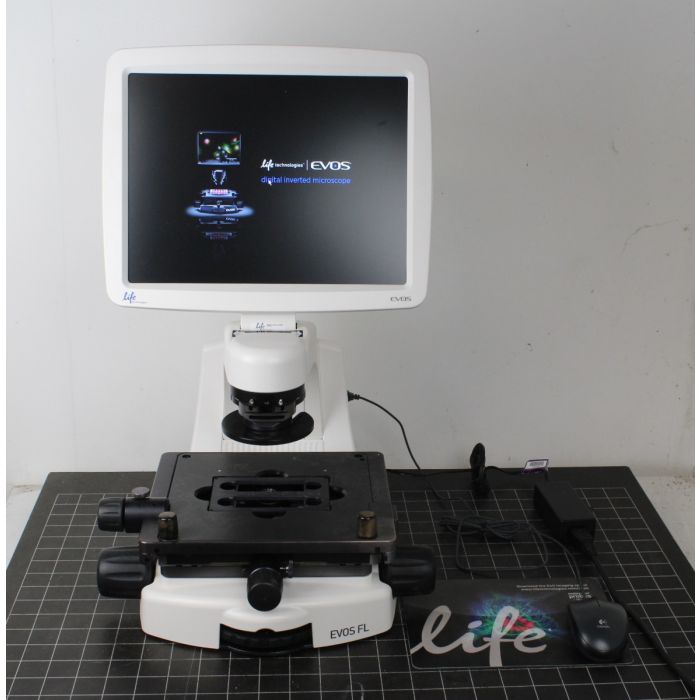

Original accessories included as per image together with spare replacement LED Light Cube and a USB/Network adapter

DOM 2014
