Leica ST5020 Multistainer

Leica ST5020 Multistainer

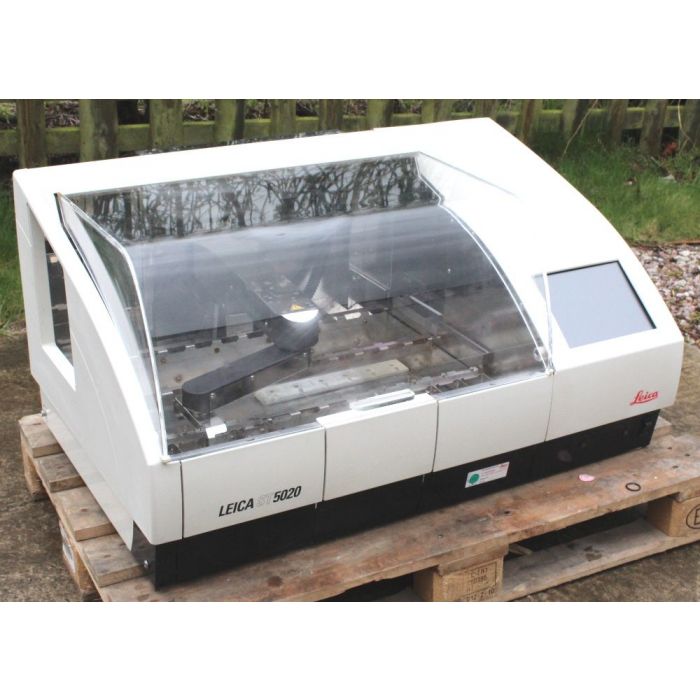

The Leica ST5020 Multistainer produces consistent, high-quality results for both routine and special stains and can perform single or multiple protocols at the same time.

In conjunction with the Leica CV5030 Coverslipper, the Leica ST5020 is an exceptionally versatile stainer-coverslipper workstation, that combines high flexibility with safer process execution. As a result, your laboratory benefits from optimized workflow.

Serial:  0221/062003

Safer Staining Process

Significantly reduce the potential for user errors as Leica Microsystem’s patented Code-Rack™ technology automatically identifies the desired stain protocol for individual racks and automatically starts the correct process.
Simple Programming

Operational safety is enhanced by the Smart Graphical User Interface featuring intuitive software visualization with a color TFT touch-screen, multilingual software, and context-sensitive online help.
Match your Laboratory's Needs

Enjoy flexibility with the multiple bath layout with 40 stations including up to 6 wash stations and up to 4 ovens/slide drying stations.
Saves Costs and Energy

Significantly reduce fume exposure with the easy load and unload draws that hold up to 120 slides.
Consistent Quality and Convenience

The Leica ST5020 reagent management system (RMS) helps to monitor reagent expiration, reagent rotation and stain quality. As a  result: Reagent changes minimize disruptions to workflow and reduce delays.

The RMS in conjunction with validated Surgipath reagents and protocols, ensures superior staining and coverslipping quality.

Specification:

Type                                                               ST5020                       ST5020
Admission                                                       CE/CSA                     CE/CSA
Nominal voltage:                                            100-120V AC±10%    230-240V AC±10%
Nominal frequency:                                         50/60 Hz                   50/60 Hz
Power input:                                                   1400 VA                     1400 VA
Protective class:                I    I
Mains power fuse:                                   Co. Schurter:Type FST,     Fa. Schurter:Type FST,
                                                                  ains power inlet 2xT8A    mains power inlet 2xT8A
Secondary Fuse:                                     Melting fuse, Ø 6.3 x 32 mm     Melting fuse, Ø 6.3 x 32 mm
                                                                    Co. Schurter: type Fst   Co. Schurter: type Fst
                                                                                       F1:T2.0 A    F1:T2.0 A
                                                                                       F2:T2.0 A    F2:T2.0 A
                                                                                       F3:T2.5 A    F3:T2.5 A
                                                                                       F4:T4.0 A    F4:T4.0 A
Pollution degree:                                                                          2    2
Overvoltage installation category:                II    II
                                                                               800 V impulse    1500 V impulse


Remote alarm relay:                                               24 V AC/DC, maximum 2 A
                                                                   Connection: potential-free contact (can be operated both as
                                                                    normally open and normally closed circuit)
Conditions
Ambient temperature range:                                           +10 °C to + 40 °C
Operating temperature range:                                        +15 °C to + 40 °C
Relative Humidity:                                                      10 % to 80 %, non condensing

Site requirements:
                                                                      Even surface of 1.60m x 0.80m minimum
                                                  Tap water supply max. 2.50 m away from the corresponding in/-outlet
                                                  at the rear of the instrument
                                                  Waste water drain pipe max. 2.00 m away from the corresponding in/-outlet
                                                  at the rear of the instrument
                                                 With air evacuation hose:  fume cupboard max. 3.50 m away from the instrument
                                                 0,90 m space above the laboratory bench

Dimension
                                                      Instrument with lid closed (WXHXD)                1060 mm/ 550mm/760mm
                                                                                                                                41.73 x 21.65 x 29.92 inches
                                                      Instrument with lid opened (WXHXD)                1060 mm/ 900mm/760mm
                                                                                                                                41.73 x 35,43 x 29.92 inches
                                                      Instrument with lid slightly opened (WXHXD)   1060 mm/ 820mm/760mm
                                                                                                                                41.73 x 32,28 x 29.92 inches
Width (from right feet to left feet)                1000 mm/39,37
Depth (from rear feet to front feet)                500 mm/19,7 inches
Depth (from rear end to front feet)                550 mm/21,65

Multistainer Workstation (with lid opened)(WXHXD)                1620 mm/980mm/760 mm
                                                                                                  63,78/38,58/29,92 inches
Weight, unpacked                                                                      ca. 90 kg/198,4 lbs

Multistainer workstation, dry weight:                                         164 kg/361lbs


Capacity data:
Specimen slide throughput:                                                       depending on protocol
Loading capacity:                                                                       max. 12 slide racks (with 12 different programs)
Side rack capacity:                                                                    30 specimen slides
Total number of stations:                                                           40 (36 + 4 oven)
Total number of reagent stations:                                              max. 34
Reagent container volume:                                                       450 ml
Number of wash stations:                                                         max. 5 + 1 Dl water (optional)
Oven:                                                                                        2 or 4
Oven chamber temperature:                                                    40 °C to + 70 °C (104 F to 158 F)
Incubation time setting:                                                            0 sec.up to 23 hrs., 59 min., 59 sec.
Load/unload stations:                                                                max. 4, min. 1, custom set up
Permanent memory capacity:                                                   max. 50 programs, up to 40 programs steps each
Integration:                                                                                connection to Leica CV 5030 Coverslipper (optional)   Stock Ref: K073
