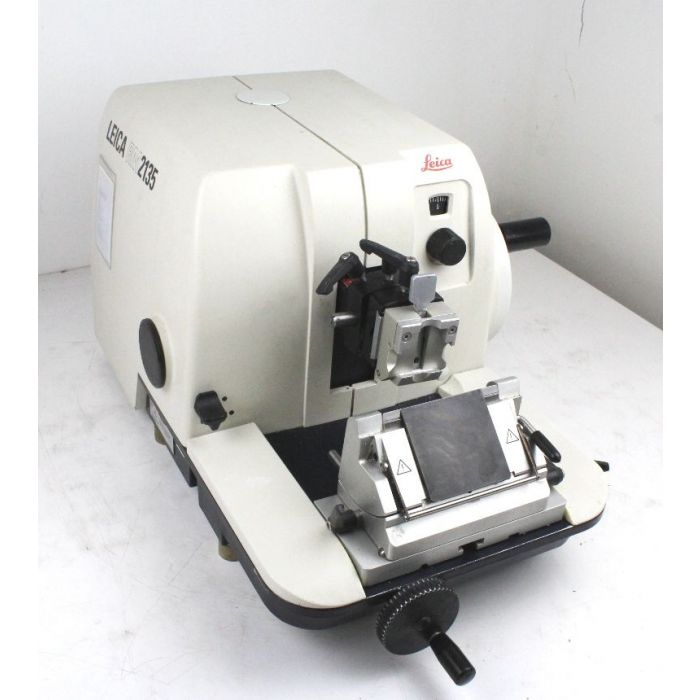

Leica RM2135 Manual Rotary Microtome

Leica RM2135 Manual Rotary Microtome



The Leica RM2135 Microtome is a ‘classic’ manual rotary microtome based on 125 years of Leica experience in manufacturing and design. The ergonomical concept of the Leica RM 2135 microtome integrates extraordinary safety standards and user friendly operation. The Leica RM2135 Microtome features cross roller bearings for the horizontal and vertical specimen feed ensure accurate reproducibility of section thickness and optimal section quality.

The Leica RM2135 rotary microtome has been designed for the routine histopathology laboratory where the manual use of a rotary microtome is preferred. The RM2135 is unencumbered by unnecessary features and equipped with all the functions needed on an entry-level microtome.

The ergonomic concept of the Leica RM2135 microtome integrates extraordinary safety standards and user friendly operation.
The Leica RM2135 microtome features zero-backlash and maintenance-free cross roller bearings for the horizontal and vertical specimen feed. This ensures accurate reproducibility of section thickness and optimal section quality. The coarse advance is manually operated by turning the coarse feed wheel. Sectioning takes place by turning the extremely smooth running handwheel.
The Leica RM2135 microtome features a gravitational force compensation system that ensures a very smooth and easy turn of the handwheel to obtain a uniform stroke for excellent, chatter-free sections. Thus, the smooth running handwheel creates stress-free working conditions while reducing repetitive motion disorders to a minimum.
The section thickness is selected via a control knob. The mechanical trimming function (optional) is activated by means of a lever. Specimen retraction is a standard feature and may be turned off when required.



• Ergonomically designed
• Mechanical high-precision specimen feed
• Backlash-free micrometer feed system in dust-proof housing
• Patented mass-balanced system to compensate gravitational forces
• Smoothly running handwheel with quick locking system
• Specimen retraction can be disengaged
• Coarse feed wheel in front or on the side
• Totally enclosed housing
• Easy to service
• Low-maintenance microtome with cross roller bearings for vertical and horizontal specimen movement
• Quick release clamping system
• Simple changing of specimens



Section thickness setting: 1 to 60 µm

from 1 to 10 µm in steps of 1 µm

from 10 to 20 µm in steps of 2 µm

from 20 to 60 µm in steps of 5 µm

Section thickness indication: display window
Coarse advance: manually via coarse feed wheel
Horizontal specimen feed: 30 mm (-10% tolerance)
Vertical specimen stroke length: 70 mm
Sectioning range without retraction: 69 mm (at 1 µm)
Sectioning range with retraction: 62 mm
Specimen orientation: 8°(x,y,z)

Dimensions (L x W x H): 525 x 310 x 295 mm

Weight (without accessories): 34 kg



Serial# 1074/03.1998
