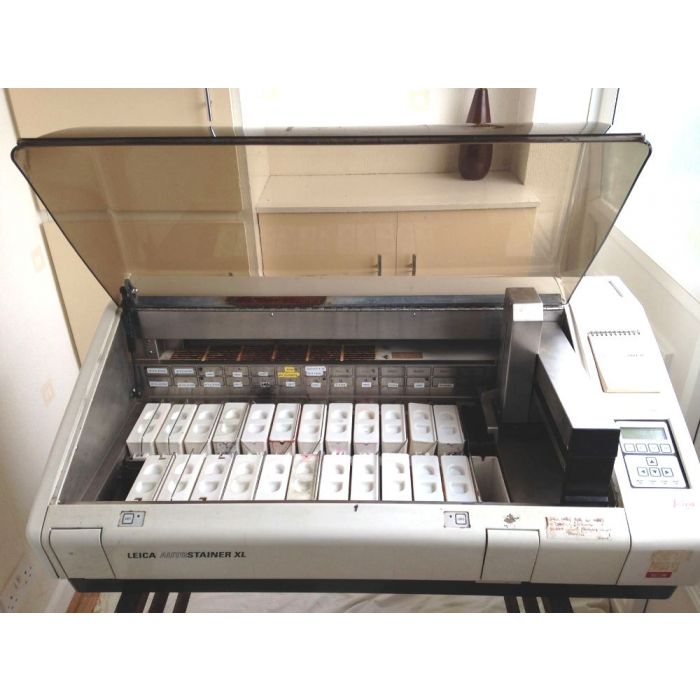

Leica Autostainer XL (ST5010)
Instrument Functions
- Compact and efficient H&E autostainer which can stain up to 200 slides per hour
- Can stain over 150 slides per hour with typical H&E protocols
- 18 reagent stations 5 wash stations and an integrated forced hot air oven that significantly reduces slide drying time
- Simultaneous staining of up to 10 sliding racks, holding 30 standard slides, using several different protocols - selecting any compatible program for each rack
- Continuous load/unload drawer access and robot arm system allows users to continue slide processing without interrupting instrument's operation
- Stainless steel robot arm moves accurately and quietly with precision on the x, y and z direction motion axes to process the slide racks
- Reagent containers can be exchanged and/or refilled quickly and easily
- Incubation times and sequence of use for reagent stations is independently programmable
- Agitation of individual slide racks is fully programmable from no agitation to continuous agitation
- Easy to use menu and microprocessor controlled
- 15 programs can be stored in memory each with up to 25 steps
- Staining programs can be terminated at any reagent and racks can be removed prior to completion of the staining protocol
- Integrated program recognition where the autostainer will not start a stain protocol that it is incompatible with another stain protocol already in progress
- Programming flexibility allows a stain protocol to begin or end in any station and move in any station sequence that maximizes utilization of the instrument
- Water saving feature which stops the flow of water if none of the wash stations is in use
- Minimized exposure to hazardous fumes with the integrated fume containment hood and extraction fan with integral charcoal filter
- PC access for fault diagnosis by service engineer
Technical Data
- Specimen slide throughput:
- Minimum of 200 slides/hour
- Maximum of 600 slides/hour
- Loading Capacity:
- 10 slide racks
- 30 specimen slides/rack
- Total number of processing stations: 26
- Reagent Stations: at least 18
- Reagent container volume: 450 mL
- Number of wash stations: maximum of 5
- Oven: 1
- Oven chamber temperature: off or 30-65C
- Incubation time setting: from 0 sec. up to 99 min.,59 sec.
- Load/Unload stations: 1 each
- Permanent memory capacity: 15 programs with up to 25 steps in each
- Dimensions(WxDxH): 109cm x 67cm x 51cm
- Weight: 65kg/143lbs
11 metal type slide racks and new type wash pots included.
| SKU | L050 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
