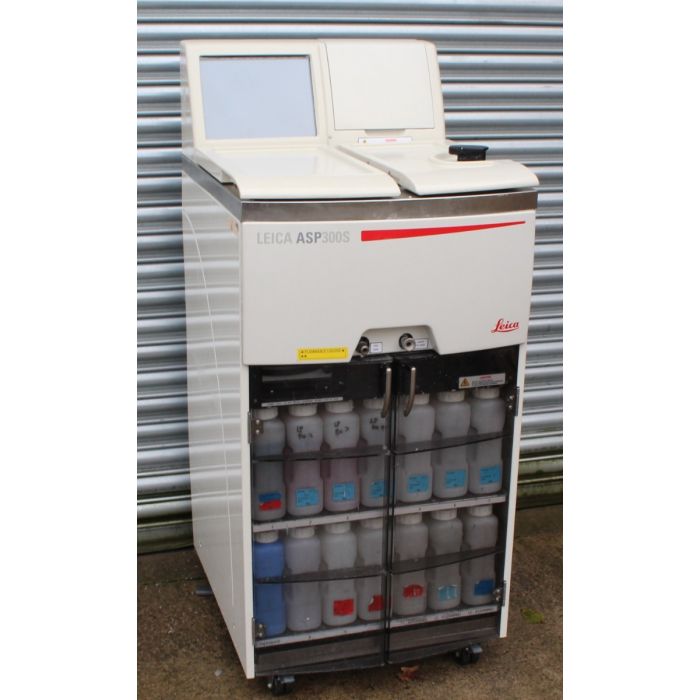

Leica ASP 300 S Tissue Processor, Histology Vacuum Processor (2008 Model)
The Leica ASP 300S tissue processor is redesigned from its predecessor the ASP 300
Designed for routine and research histopathology of up to 300 cassettes
Proven technology combined with top quality components. Optional RemoteCare diagnostic provide superior instrument reliability.
Simplify user operations with an intuitive user interface, color touch screen and a variety of "smart" features. Improve specimen quality and laboratory economy with the Reagent Management System and quick start for commonly used programs.
Favorite protocol selection
Favorite protocol selection on SmartScreen provides “one button” operation to start a processing protocol.
Favorite protocol selection on SmartScreen provides “one button” operation to start a processing protocol.
Vacuum pressure
Vacuum, pressure, or cycle of both, are programmable for each processing step to enhance infiltration and speed up reagent exchange.
Vacuum, pressure, or cycle of both, are programmable for each processing step to enhance infiltration and speed up reagent exchange.
Optional RemoteCare
Optional RemoteCare onboard diagnostics monitors system functions via internet connection to identify potential failure and increase uptime.
Built-in safety features
Built-in safety features help to prevent reagent cross-contamination and support human error reduction.
Built-in safety features help to prevent reagent cross-contamination and support human error reduction.
Customized reagent management system
Customized reagent management system by days, runs or cassettes provides true support of individual needs.
Customized reagent management system by days, runs or cassettes provides true support of individual needs.
Technical Specifications:
PROCESSING RETORT
Maximum capacity – metal basket: 300 cassettes
Maximum capacity – microwaveable plastic basket: 252 cassettes
Retort material: stainless steel
Level sensing: optical sensors
Processing retort volume: 4.3 liters
Paraffin temperature range: 40–65 °C
Reagent temperature range: ambient, 30–55 °C
Temperature accuracy: +/– 1 °C
Retort draining: selectable (80, 120, 140 seconds), 3 steps
Vacuum & pressure options: 4 (V/P, V, P, Ambient)
Vacuum: – 70 kPa (g)
Pressure: +35 kPa (g)
Recirculation (pump in/out)
Time before first cycle: 12 minutes
Time between cycles: 20 minutes
Incubation time: 0–99 hours, 59 minutes
Delayed end-time: programmable, up to one week
Maximum capacity – metal basket: 300 cassettes
Maximum capacity – microwaveable plastic basket: 252 cassettes
Retort material: stainless steel
Level sensing: optical sensors
Processing retort volume: 4.3 liters
Paraffin temperature range: 40–65 °C
Reagent temperature range: ambient, 30–55 °C
Temperature accuracy: +/– 1 °C
Retort draining: selectable (80, 120, 140 seconds), 3 steps
Vacuum & pressure options: 4 (V/P, V, P, Ambient)
Vacuum: – 70 kPa (g)
Pressure: +35 kPa (g)
Recirculation (pump in/out)
Time before first cycle: 12 minutes
Time between cycles: 20 minutes
Incubation time: 0–99 hours, 59 minutes
Delayed end-time: programmable, up to one week
PARAFFIN BATHS
Number of paraffin baths 3, connected directly to the retort
Paraffin bath volume 4.3 liters each
Average paraffin melting time: approx. 10 hours
Number of paraffin baths 3, connected directly to the retort
Paraffin bath volume 4.3 liters each
Average paraffin melting time: approx. 10 hours
REAGENT BOTTLES
Number of reagent bottles: 10
Reagent bottle volume: 4.3 liters each
Clean cycle bottles: 3, plus 1 external
Number of reagent bottles: 10
Reagent bottle volume: 4.3 liters each
Clean cycle bottles: 3, plus 1 external
OTHERS
Display: Color touchscreen, solvent-resistant
Reagent Management System
Remote fill and drain system
Remote paraffin drain system
Two external alarm connections
Display: Color touchscreen, solvent-resistant
Reagent Management System
Remote fill and drain system
Remote paraffin drain system
Two external alarm connections
Serial# 2748/03.2008
Manufacture Date March 2008
DIMENSIONS D x W x H 68 x 59 x 132 cm
WEIGHT 160 k
Pdf manual
| SKU | P267 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
| Shipping | £60.00 |
