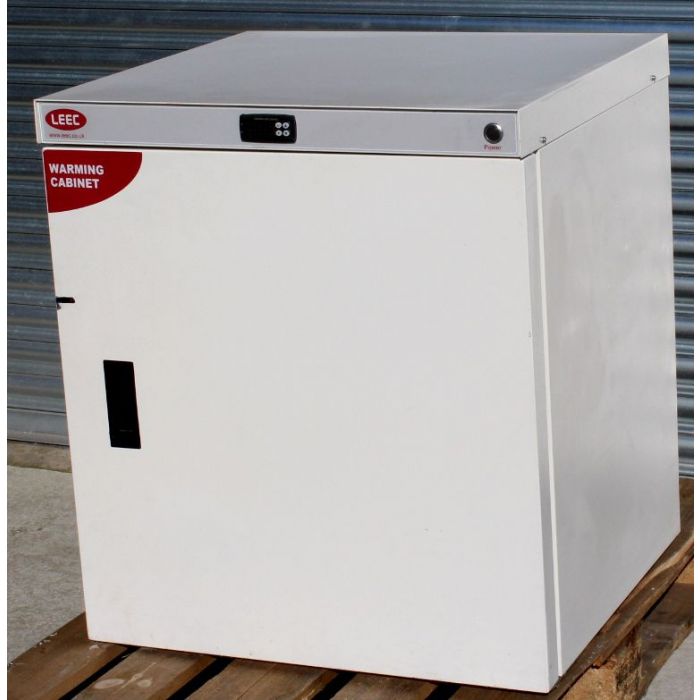

LEEC W157 Warming Cabinet

LEEC W157 Warming Cabinet



Features



Stainless steel construction
Energy efficient
Fully sealed chamber
Simple to use
Fan assisted air circulation
Fast recovery time
Accurate temperature control
Radius corners - easy to clean and disinfect



TYPICAL USES



Warming cabinets (also known as blanket warmers, solution warmers, fluid / lotion warmers or heated lotion cabinets) are designed for use in hospitals in Operating Theatres, Accident and Emergency departments (A & E / casualty), and also maternity delivery suites. They are suitable for warming bottles, bags of fluid / saline, and blankets to 37.0°C or above.



CONSTRUCTION



The new LEEC Warming Cabinet Range has fully sealed chambers manufactured from polished stainless steel with rounded corners for easy cleaning. The outer cabinet is manufactured from stainless steel, and has a tough powder coat paint finish. This gives the warming cabinet exceptional corrosion resistance. An inner glass viewing door closes positively onto a silicone gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A rear access port allows temperature monitoring probes to be inserted safely into the chamber.



HEATING



New profiled resistive wire heating elements and high performance insulation ensure optimum temperature control. All models have gentle fan assisted air circulation. This ensures even temperature distribution throughout the chamber. Fast temperature recovery keeps heat loss to a minimum after door opening.



TEMPERATURE CONTROL



The latest in microprocessor temperature controller technology gives this warming cabinet range excellent temperature stability to within 0.1°C. Fuzzy Logic and Auto Tune features allow the controller to adapt to each chamber size, optimising their performance and accuracy. The controller is simple to use, with target and actual temperatures being displayed in real time on a two-colour digital display.



SAFETY



Over and under temperature alarm thresholds can be programmed into the controller. An independent safety cut out disconnects the heating elements should an over temperature condition occur



External (Dimensions H x W x D mm) 790 x 684 x 620
Internal (Dimensions H x W x D mm) 573 x 550 x 500
Chamber Cacapity (litres) 157
Shelves included 3
Temperature Range At least 5°C above ambient to +60°C
Temperature Control Typically ± 0.1°C at 37°C



Serial# 00112



PDF Manual



Note small scrape on front door as per close up image
