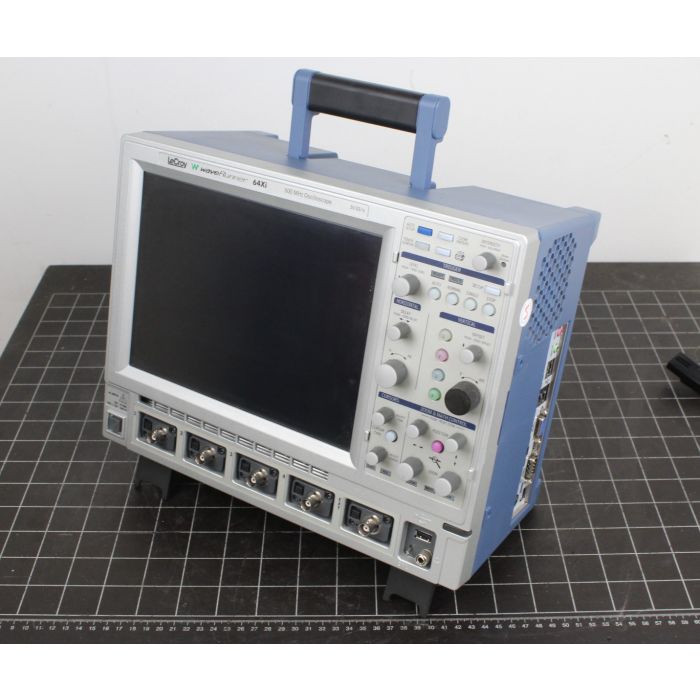

LeCroy WaveRunner 64MXi Digital Oscilloscope

LeCroy WaveRunner 64MXi Digital Oscilloscope

The LeCroy WaveRunner Xi with its advanced triggers, fast viewing modes, measurement parameters, and serial decodes makes validation and debug simple and easy. Advanced debug, multi-domain analysis, and waveshape analysis are possible with tools unique to WaveRunner Xi, Building on the features and capabilities of the WaveRunner Xi the WaveRunner 64MXi provides a higher level of analysis, measurement and customization tools,

The collection of tools, features an functions packed into this small 6" deep instrument with large 10.4" touch screen make the WaveRunner 64MXi a truly unique oscilloscope. With a maximum sampling rate of 10 GS/s (5 GS/s per channel) you can be confident in all your measurements knowing that even the fastest signals in your device are being captured. High sample rate is important for fast signals and edges but without long memory this rate cannot be maintained for long captures. The 25 Mpts (12.5 Mpts/Ch) fast memory guarantees maximum sample rate for 2.5 ms.

Beyond the impressive specifications, the WaveRunner 64MXi provides a set of tools like no other oscilloscope. Use WaveScan to search through a single capture for a rare event, or scan through live data acquisitions. The LabNotebook report generator lets you quickly share findings with others and even allows you to make hand written notes directly on top of the signals. With the advanced math and measure tools you can look at every aspect of your waveforms and understand the distribution of measurements with histograms of up to 2 billion events, trends of up to 1 million measurements and a track function that shows variations in signals over time. Adding to the flexibility of th WaveRunner MXi is the ability to create your very own customer or proprietary measurements, math functions, filters or scripts and run them directly in the oscilloscope having results displayed in real time.

Add high-performance mixed signal capability to a WaveSurfer MXs. Capture digital signals up to 500 MHz with up to 50 Mpts/Ch memory, 2 GS/s, and 18 or 36 channels.

600 MHz Bandwidth
5 GS/s (10 GS/s interleaved
Sample Rate (RIS mode) 200 GS/s
Standard Record Length 12.5 Mpts/Ch (25 Mpts interleaved)
Standard Capture Time up to 2.5 ms on all four channels at 5 GS/s
Vertical Resolution 8 bits
Vertical Sensitivity (V/div) 2 mV/div–10 V/div (1 MΩ); 2 mV/div–1 V/div (50 Ω)
Vertical (DC Gain) Accuracy ±1.0% of full scale
BW Limit 20 MHz, 200 MHz
Maximum Input Voltage 50 Ω: 5 Vrms, 1 MΩ: 400 V max. (DC + Peak AC ≤ 5 kHz)
Input Coupling AC, DC, GND (DC and GND for 50 Ω)
Probing System BNC or ProBus
Probes One passive probe per channel (standard)
Timebase Range Real time: 200 ps/div–10 s/div, RIS mode: 200 ps/div to 10 ns/div, Roll mode: up to 1000 s/div
Timebase Accuracy ≤ 5 ppm @ 25 °C (typical) (≤ 10 ppm @ 5–40 °C)
Trigger Modes Normal, Auto, Single, and Stop
Trigger Sources Any input channel, External, Ext/10, or line; slope and level unique to each source (except for line trigger)
Trigger Coupling DC, AC, HFRej, LFRej
Pre-trigger Delay 0–100% of full scale
Post-trigger Delay 0–10,000 divisions
Trigger Hold-off 1 ns to 20 s or 1 to 1,000,000,000 events
Internal Trigger Level Range ±4.1 div from center
External Trigger Range EXT/10 ±4V; EXT ±400 mV

Pdf manual

Serial# LCRY0612M22933

Complete with PP008 500MHz Probe
