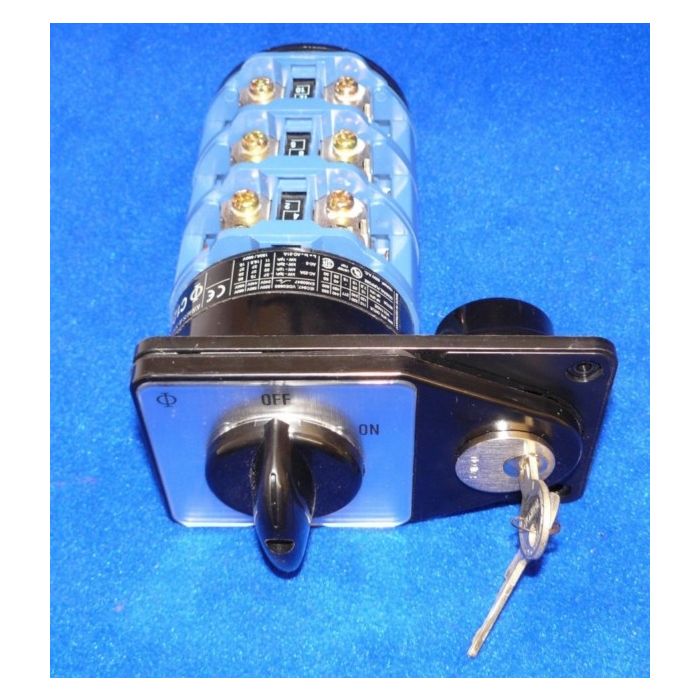

Kraus & Naimer C125 cam switch with lock, CL Series

Kraus & Naimer C125 cam switch with lock, CL Series

Model: C125
Manufacturer: Kraus & Naimer

The C Switch C-Series switches represent the classic cam switch by Kraus & Naimer
60 Degree Switching Angle
NEW OLD STOCK

Switch features:
- S2 (88x88mm) Front element size
- Terminal screws accessible
- Designed for vertical wiring (resp. horizontal for -V mountings)
- Terminal is stainless and acid resistent

Switch - C125

Switch Size - S2
Escutcheon Plate - 88x88[mm]
According to IEC 60947-3/VDE 0660 part 107
Insulation Voltage 1) Ui [V] - 690
Thermal Current Iu/Ith [A] - 150
Motor Rating 3x380V-440V
AC-23 [kW] - 75
AC-3 [kW] - 37

NOTES
Switch features:
- S2 (88x88mm) Front element size
- Terminal screws accessible
- Designed for vertical wiring (resp. horizontal for -V mountings)
- Terminal is stainless and acid resistent

Minimum Voltage 20V
Rated Impulse Withstand Voltage Uimp 6kV 1)
Short Circuit Protection
Max. fuse size (gL/gG-characteristic) 200A
Rated short-time withstand current (1s-current) 2000A
Ambient Temperature of Stages
open at 100% Iu/Ith 55°C during 24 hours with peaks up to 60°C at 100% load
Max. Permissible Wire Gage
Single-core or stranded wire 70mm2 AWG 2/0
Flexible wire 50mm2 AWG 1/0
Flexible wire with sleeving in accordance with DIN 46228 50mm2
