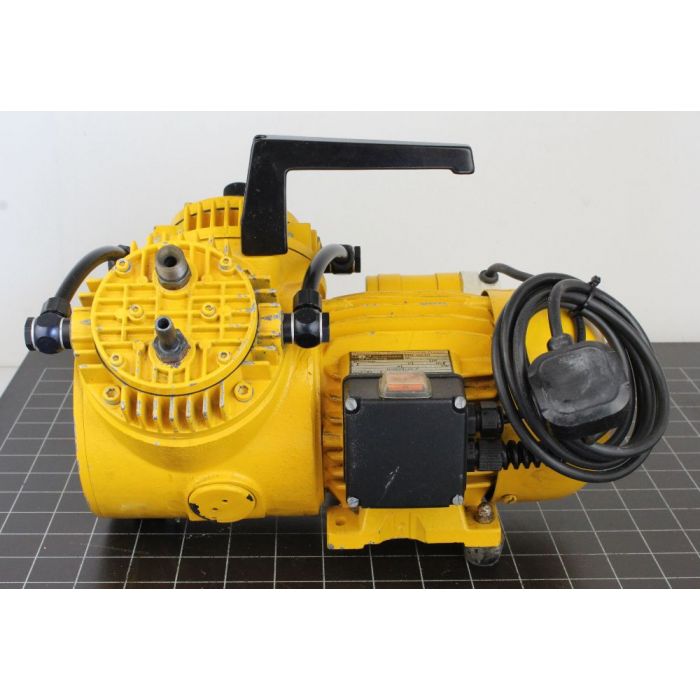

KNF N145.1.2AN.18 - Diaphragm Vacuum Pump

KNF N145.1.2AN.18 - Diaphragm Vacuum Pump



- These series of diaphragm pumps are double-head, dry-running devices used in a wide range of
   laboratory applications.
- They transfer, compress and pump down without contamination.



Technical features
100% oil-free transfer
Pure transferring, evacuation and compression of gases
Version for slightly aggressive or corrosive gases and vapours
Maintenance-free
Environmentally friendly
Gastight, leakage rate approx. 6 x 10-3 mbar x l/s, not tested in serial production

The Diaphragm Pumps offer a high level of performance despite their compact construction style, as well as an excellent price performance ratio. They are required especially in the fields of analysis, chemicals, medicine and production technology.
The pumps are used for transferring and sucking gases, taking samples (even liquids in a vacuum), evacuating vessels and compressing gases in process systems and vessels.

The Diaphragm Pumps from KNF are based on a simple principal - an elastic diaphragm, fixed on its edge, moves up and down its central point by means of an eccentric.
In this way the medium is transferred using automatic valves.

Delivery (l/min)1) 55
Ultimate vacuum (mbar abs.) 100
Operating pressure (bar g) 7

DimensionsLxHxW(mm)350/260/250



PDF Manual



Serial#136584
