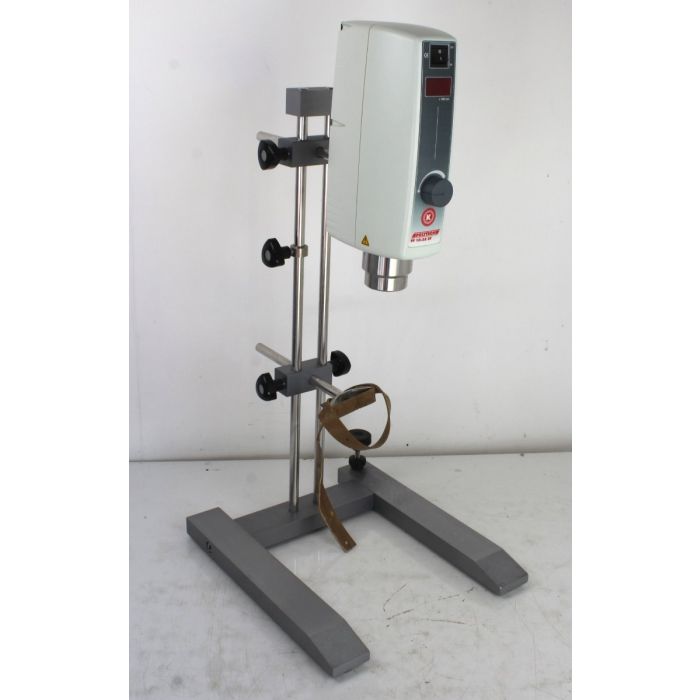

Kinematica Polytron PT 10-35 GT with H-stand and vessel holder
Kinetica / Polytron can supply the appropriate dispersing tool for you application
https://www.kinematica.ch/productfinder/d-137/pt-da-20-2-ec-f193
PT 10-35 GT features high drive power and sleek design. With its large reserve capacity, it can be used for a sample with large volumes as easily as preparing samples with small volumes.
BENEFITS
Ergonomics
– Easy operation with an on-off switch and speed control
– Intelligent variable speed control for long equipment life
– Speed stability even with changes in viscosity
– Easy to adjust motor height (depending on the stand)
– Switch aggregate quickly with Click & Go coupling
– Easy aggregate clean-up with EasyClean Design
Ergonomics
– Easy operation with an on-off switch and speed control
– Intelligent variable speed control for long equipment life
– Speed stability even with changes in viscosity
– Easy to adjust motor height (depending on the stand)
– Switch aggregate quickly with Click & Go coupling
– Easy aggregate clean-up with EasyClean Design
Results are convincing
– Smallest sizes of particles / droplets: because precise analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion saves time
– Standard or custom-made aggregates: perfected for and in cooperation with the users
– Cleaning and disassembly: EasyClean Design makes it very simple
– Quick coupling of the aggregates: by using Click & Go
– Best materials available: because without them, we could not call it Swiss Made
– Durability is a Swiss virtue
– Smallest sizes of particles / droplets: because precise analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion saves time
– Standard or custom-made aggregates: perfected for and in cooperation with the users
– Cleaning and disassembly: EasyClean Design makes it very simple
– Quick coupling of the aggregates: by using Click & Go
– Best materials available: because without them, we could not call it Swiss Made
– Durability is a Swiss virtue
TECHNICAL INFORMATION
Min. Volume (ml) 0.1
Max. Volume (ml) 10000
Power (W) 1200
Tip speed Up to max. 34 m/s
Applicable aggregates ø 5 mm to ø 36 mm
Speed range 500 – 30 000 rpm
Drive coupling Aggregates with F coupling
Noise level (drive without aggregate) 75 dB(A) at 25 000 rpm / 82 dB(A) at 30 000 rpm
Motor Universal with carbon brushes
Connection voltage 230 V ± 10 %, 50Hz / 60Hz
Relative humidity (max.) 80 % during storage / 80 % during operation
Operating temperature 0 – 40 °C
Protection class acc. to DIN IP 20
Dimensions (LxWxH) Drive: 95 x 210 x 247 mm
Weight Drive: 3200 g
EMC standards IEC / EN 61000-6-2 / EN 61000-6-3
Safety standard IEC / EN 61010-2-51
Tip speed Up to max. 34 m/s
Applicable aggregates ø 5 mm to ø 36 mm
Speed range 500 – 30 000 rpm
Drive coupling Aggregates with F coupling
Noise level (drive without aggregate) 75 dB(A) at 25 000 rpm / 82 dB(A) at 30 000 rpm
Motor Universal with carbon brushes
Connection voltage 230 V ± 10 %, 50Hz / 60Hz
Relative humidity (max.) 80 % during storage / 80 % during operation
Operating temperature 0 – 40 °C
Protection class acc. to DIN IP 20
Dimensions (LxWxH) Drive: 95 x 210 x 247 mm
Weight Drive: 3200 g
EMC standards IEC / EN 61000-6-2 / EN 61000-6-3
Safety standard IEC / EN 61010-2-51
Serial No PF-789-0035-01-10
PDF Manual available
| SKU | P072 |
|---|---|
| Availability | Out of Stock |
| Condition | Used |
